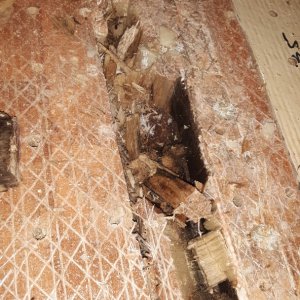

under the galley, you can see the void

under the galley, you can see the void

  • Reaction score 0
  • Comments 0

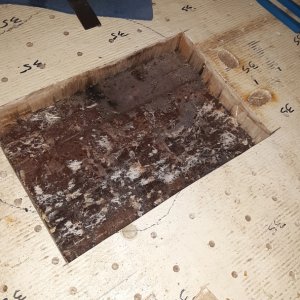

this is the area of dark shavings under the galley, it was rotten and there was a void there where they didn't get enough resin to bond the balsa to the bottom skin

this is the area of dark shavings under the galley, it was rotten and there was a void there where they didn't get enough resin to bond the balsa to the bottom skin

  • Reaction score 0
  • Comments 0

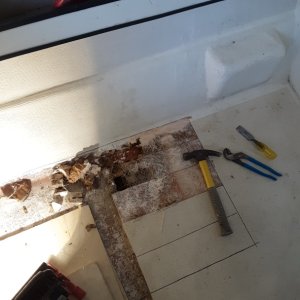

yep, more rotten core

yep, more rotten core

  • Reaction score 0
  • Comments 0
must keep going on the port side

must keep going on the port side

  • Reaction score 0
  • Comments 0

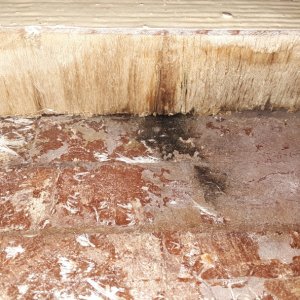

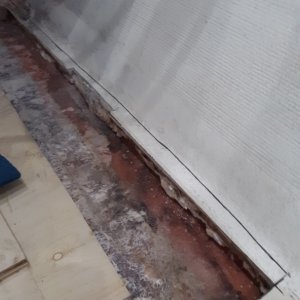

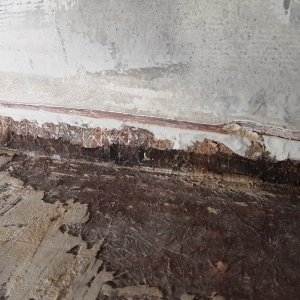

wet transom core at bottom, looks like the layup on the hull was a little resin starved

wet transom core at bottom, looks like the layup on the hull was a little resin starved

  • Reaction score 0
  • Comments 0

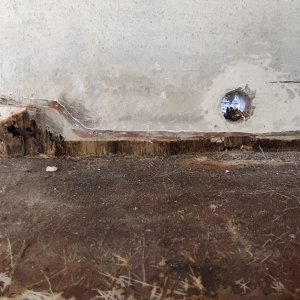

wish the hull core and transom core were not butted together with no seal

wish the hull core and transom core were not butted together with no seal

  • Reaction score 0
  • Comments 0

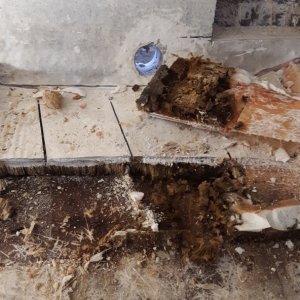

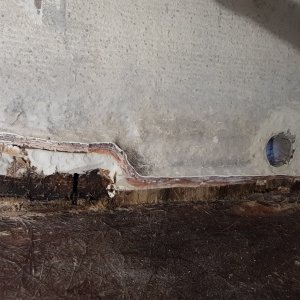

bad news here, wet hull has infected transom coring

bad news here, wet hull has infected transom coring

  • Reaction score 0
  • Comments 0

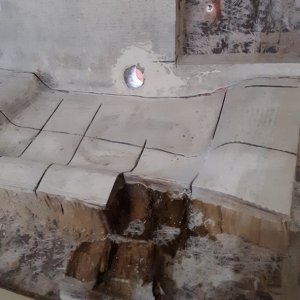

real nasty under there

real nasty under there

  • Reaction score 0
  • Comments 0

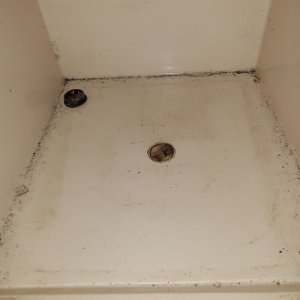

removing the sump

removing the sump

  • Reaction score 0
  • Comments 0

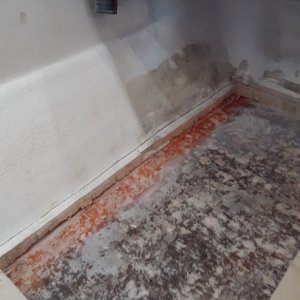

trimming to the edge

trimming to the edge

  • Reaction score 0
  • Comments 0
trimming closer to the edge with a electric die grinder with wheel

trimming closer to the edge with a electric die grinder with wheel

  • Reaction score 0
  • Comments 0

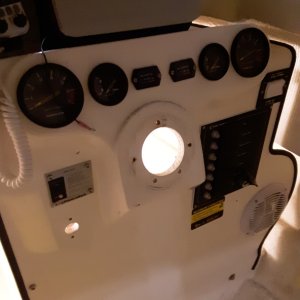

helm removed

helm removed

  • Reaction score 0
  • Comments 0

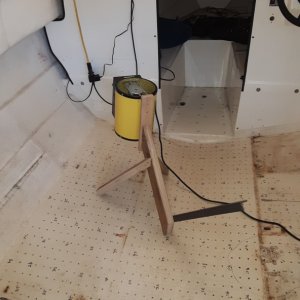

4000 watt heater with custom stand for drying wet cores

4000 watt heater with custom stand for drying wet cores

  • Reaction score 0
  • Comments 0

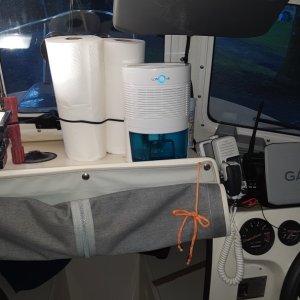

got a dehumidifier for drying it out, never really got much in here though, the heater is a beast

got a dehumidifier for drying it out, never really got much in here though, the heater is a beast

  • Reaction score 0
  • Comments 0
dark shavings are bad, light shavings means the core can be dried

dark shavings are bad, light shavings means the core can be dried

  • Reaction score 0
  • Comments 0

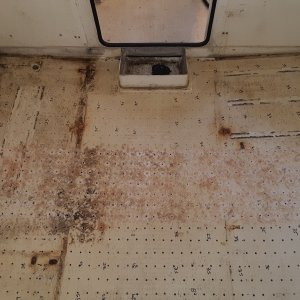

dark shavings under galley, will have to cut and inspect

dark shavings under galley, will have to cut and inspect

  • Reaction score 0
  • Comments 0

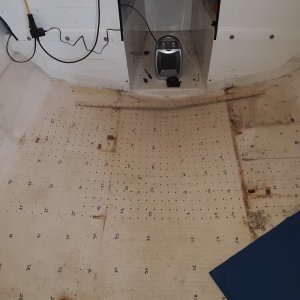

drilling holes to allow moisture out

drilling holes to allow moisture out

  • Reaction score 0
  • Comments 0

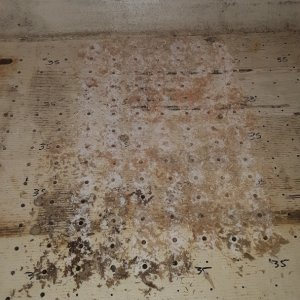

moisture readings gridded out, 35 = bad

moisture readings gridded out, 35 = bad

  • Reaction score 0
  • Comments 0

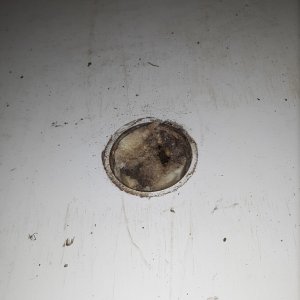

wet foam, this plug is not water tight and this is a low point

wet foam, this plug is not water tight and this is a low point

  • Reaction score 0
  • Comments 0
wet foam under the porta-potty

wet foam under the porta-potty

  • Reaction score 0
  • Comments 0

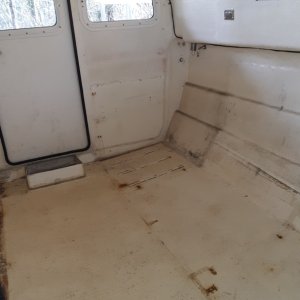

empty

empty

  • Reaction score 0
  • Comments 0
plumbing and electrical out

plumbing and electrical out

  • Reaction score 0
  • Comments 0

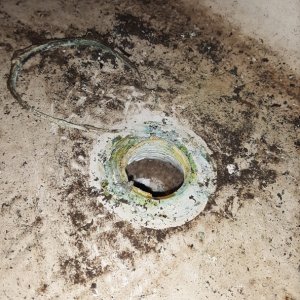

raw water hole, wet but not rotten core

raw water hole, wet but not rotten core

  • Reaction score 0
  • Comments 0

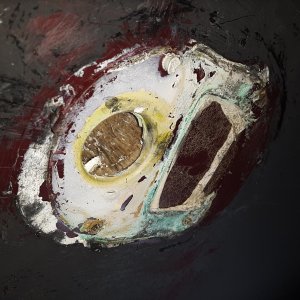

raw water intake, wet core, bottom of hull

raw water intake, wet core, bottom of hull

  • Reaction score 0
  • Comments 0
C

Patch from a collision?
