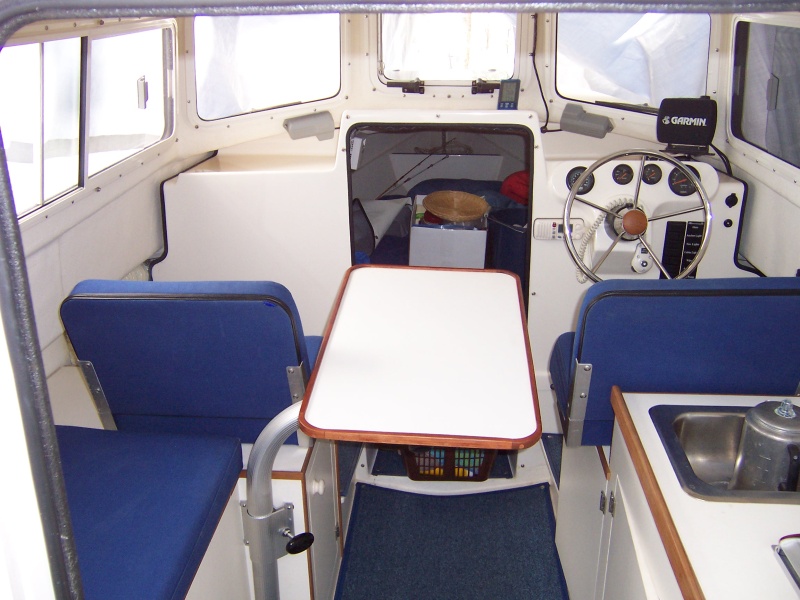

Table can also be positioned between the helm and passenger seat.
Next
Prev
I need to give credit to Richard (C Eagle) for giving me the idea for this table and a way to let it swivel on the third axis. I used a 12"x12"x1/8" sheet of 5052 aluminum and a 12"x12"x1/2" sheet of HDPE from (Small Parts, Inc.) along with stainless steel screws, bolts, nuts and washers to allow the table top to turn 360 degrees.
The Garelick table has a Melamine table top, anodized pedestal, wall bracket and table bracket.
Table can also be turned in this position allowig some use from forward seats and bench seat at the same time. It is possible to crawl under it.
Table can also be positioned between the helm and passenger seat.
Another shot of table stowed in vertical position allowing free fore and aft movement.
Table can also be stowed in a vertical position allowing one person to sit on bench seat. Access to storage lockers is possible in this position also.
Another shot of foot and bench seat locker access.
Next
W

Table can also be positioned between the helm and passenger seat.

Table can also be positioned between the helm and passenger seat.
Click to expand...
There are no comments to display.

Media information

Category
Modifications
Album
C-Swell did not have a table so I decided to add a Garelick stowable table. I added cherry wood molding made by my Dad to keep things from sliding off and to go with the other wood trim in the cabin.
