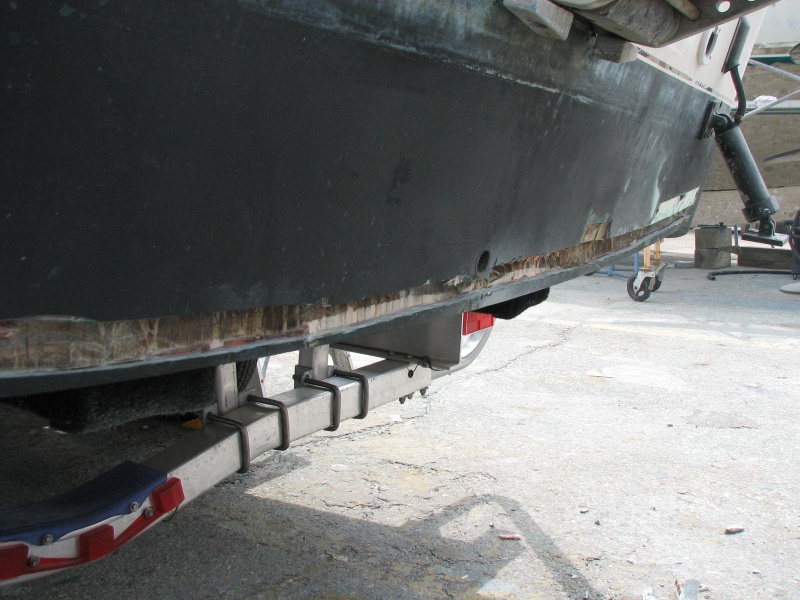

cut along the entire bottom of transom to expose the balsa core and dry it before filling this void with glass and relaminating the transom
Next
Prev
annotated void in the core at the transom. This core in the bottom of the boat should be separated from the transom core by at least a layer of glass and should extend to the extreme end of the boat, so there is no voids, where water can trap. The solution is to fill this gap with solid glass.
annotatred photo of transom. Note the layers of gel coat, both green and white which were under the filler. The filler is the only item which crosses the entire transom, no glass in this layer, so it is susceptable to cracks.
sketch of transom
cut along the entire bottom of transom to expose the balsa core and dry it before filling this void with glass and relaminating the transom
Glass patch on port side of transom
Glass across stb side of transom
The port side of the transom. We are filling this with glass. The construction is the same all along the transom.
Next
T

cut along the entire bottom of transom to expose the balsa core and dry it before filling this void with glass and relaminating the transom

  • Media owner thataway
  • Date added
cut along the entire bottom of transom to expose the balsa core and dry it before filling this void with glass and relaminating the transom
