Filling all the holes with fiberglass resin.

Filling all the holes with fiberglass resin.

  • Reaction score 0
  • Comments 0

  • Reaction score 0
  • Comments 0

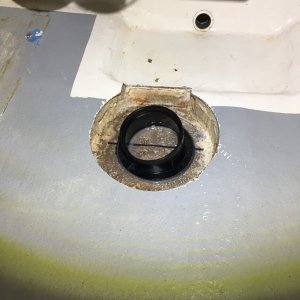

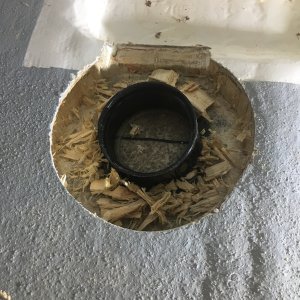

Test fitting to make sure the transponder fits onto the base without hitting the resin.

Test fitting to make sure the transponder fits onto the base without hitting the resin.

  • Reaction score 0
  • Comments 0
Resin poured.

Resin poured.

  • Reaction score 0
  • Comments 0
Ready to pour the fiberglass resin mixed with colloidal silica.

Ready to pour the fiberglass resin mixed with colloidal silica.

  • Reaction score 0
  • Comments 0

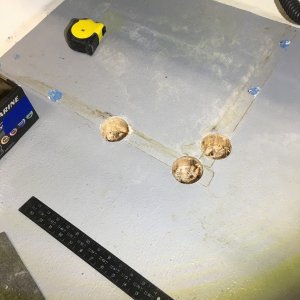

Cutting out the 3 screw holes for the bilge pump mount to screw into solid resin.

Cutting out the 3 screw holes for the bilge pump mount to screw into solid resin.

  • Reaction score 0
  • Comments 0

  • Reaction score 0
  • Comments 0
Undercut around the hole to give the fiberglass resin something to hold onto.

Undercut around the hole to give the fiberglass resin something to hold onto.

  • Reaction score 0
  • Comments 0

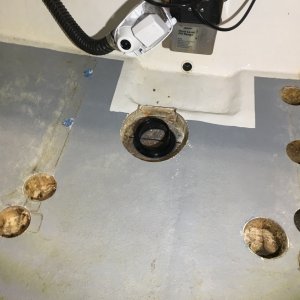

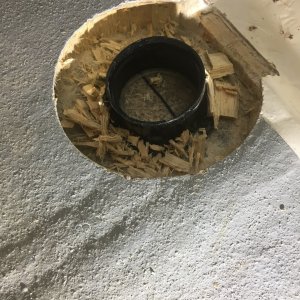

Mounted the transponder base to the bottom of the boat with a thin bead of silicone to hold it in place, fiberglass resin will be poured around it.

Mounted the transponder base to the bottom of the boat with a thin bead of silicone to hold it in place, fiberglass resin will be poured around it.

  • Reaction score 0
  • Comments 0

  • Reaction score 0
  • Comments 0
Spent most of the winter drying out the core with a heat gun shooting into the holes when I had spare time.

Spent most of the winter drying out the core with a heat gun shooting into the holes when I had spare time.

  • Reaction score 0
  • Comments 0

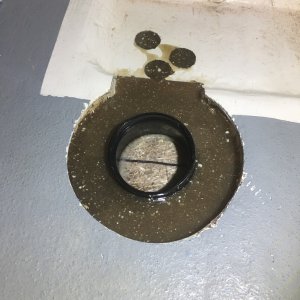

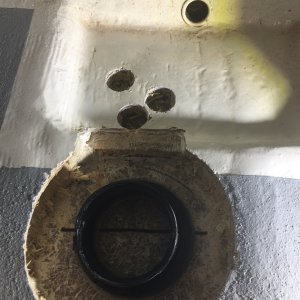

Cut into the lower area where water collects for the bilge pump and drain plug area so no puddles will form around the transponder mounting.

Cut into the lower area where water collects for the bilge pump and drain plug area so no puddles will form around the transponder mounting.

  • Reaction score 0
  • Comments 0

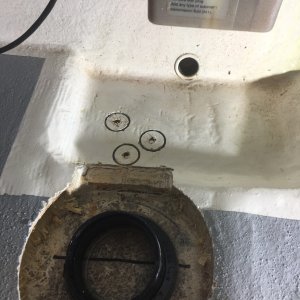

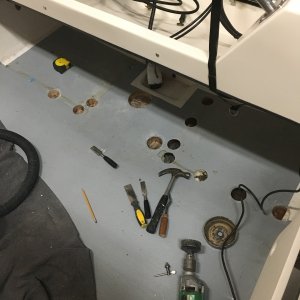

Notice the three holes where the bilge pump was mounted. Another potential water leak into the balsa core.

Notice the three holes where the bilge pump was mounted. Another potential water leak into the balsa core.

  • Reaction score 0
  • Comments 0

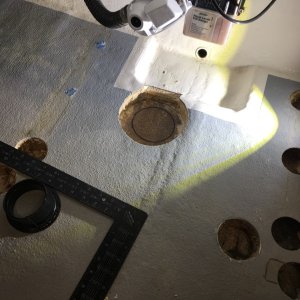

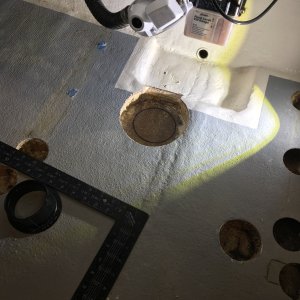

Marking the spot where the transponder base will be mounted.

Marking the spot where the transponder base will be mounted.

  • Reaction score 0
  • Comments 0
Had water intrusion into the balsa core where the gas tank brackets were screwed in so I drilled those areas out with a hole saw.

Had water intrusion into the balsa core where the gas tank brackets were screwed in so I drilled those areas out with a hole saw.

  • Reaction score 0
  • Comments 0

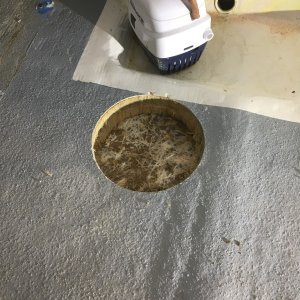

4 inch hole saw to begin the installation. Wanted it mounted as far aft as possible.

4 inch hole saw to begin the installation. Wanted it mounted as far aft as possible.

  • Reaction score 0
  • Comments 0
C

4 inch hole saw to begin the installation. Wanted it mounted as far aft as possible.
