View of rear. The dark area onright is wet so I still need to clear a bit more in that direction.
Next
Prev
This shows the various ways the floor looks: nice pink smooth fiberglass, icky black fiberglass, areas of fuzzy mat and a lot of unevenness. How much sanding do I need to do to get it ready for new mat?

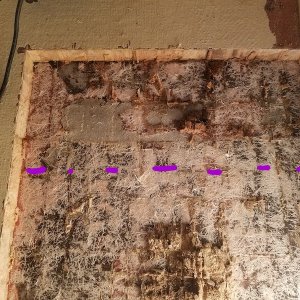

The dotted line is where I left off. I had one little black line to follow back and thought the rest looked pretty good. Once I cut in it was full of water back there. The smooth areas are where the balsa was not adhered to the floor at all.
The whole shot so far. It is huge, and tbh, my cheap pin meter shows high moisture all around. There is no dry!
View of rear. The dark area onright is wet so I still need to clear a bit more in that direction.
Front view after removing the wet areas and cutting out the un-adhered area. Note the wide kerfs. These are what the water followed up. One on the right is filled with nearly 1/2 inch fiberglass.
This is in the bow. You cansee the balsa looks good, but it is not adhered to the bottom and moisture trickled out.
Near v-berth support on starboard side. Where dark lines are may (probably?) needs more cleaning out?
Next
J

View of rear. The dark area onright is wet so I still need to clear a bit more in that direction.

  • Media owner Jackie
  • Date added
View of rear. The dark area onright is wet so I still need to clear a bit more in that direction.
Click to expand...
There are no comments to display.

Media information

Category
Balsa core rot. (Liquification)
Album

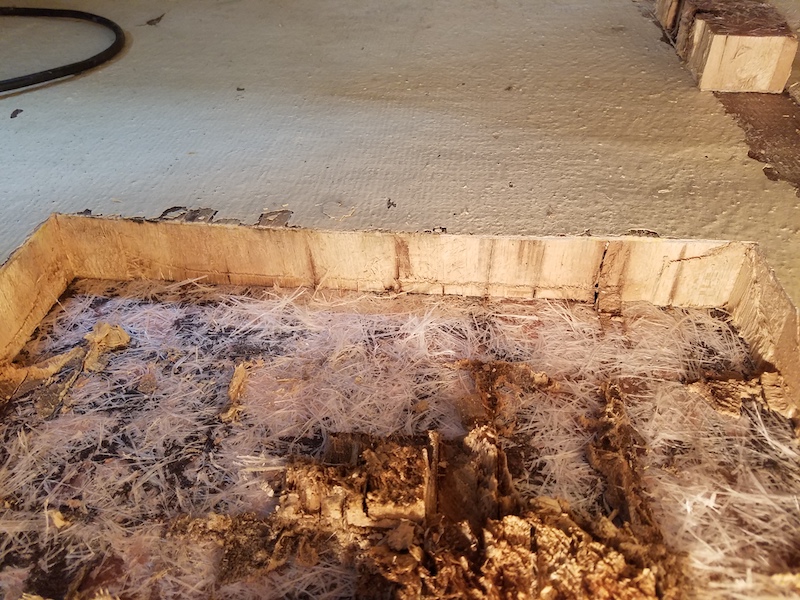

First cutout. It was clearly hollow under here.
