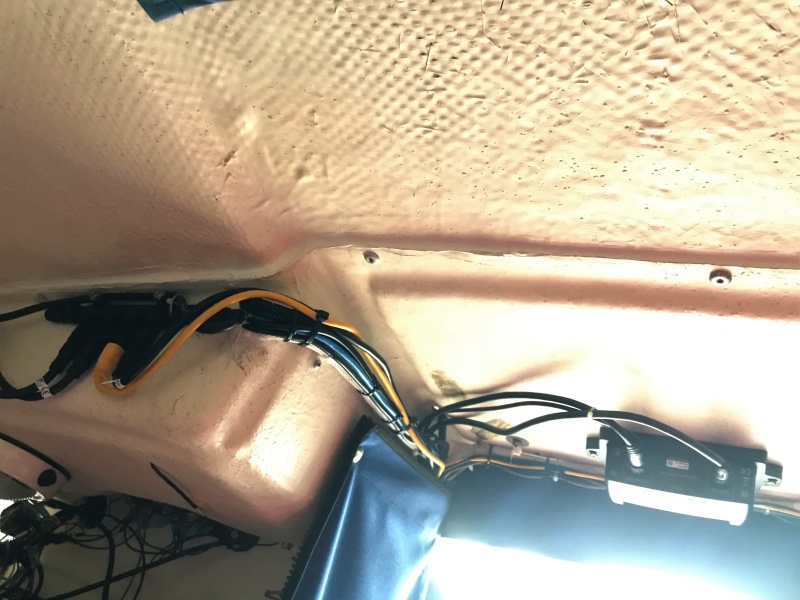

View of Network 5 way T and CCU
Next
Prev
View of Network 5 way T and CCU
Shadow drive mounted on starboard side of helm.
Main network T mounted in Vberth above back of helm.
CCU was mounted at top of VBerth entry way.
View of Smart pump with all hydraulic and electric lines installed. Slack of electric lines was coiled up and set on top of pump.
Back of the helm plumbing. Bottom line is return hose to Smart pump. Single vinyl hose goes to Shadow drive, and past that is tee\'d off to Smart pump and main steering hose. Tee is main steering hose and vinyl hose to Smart pump.
Smart pump now plumbed with it\'s hydraulic lines
