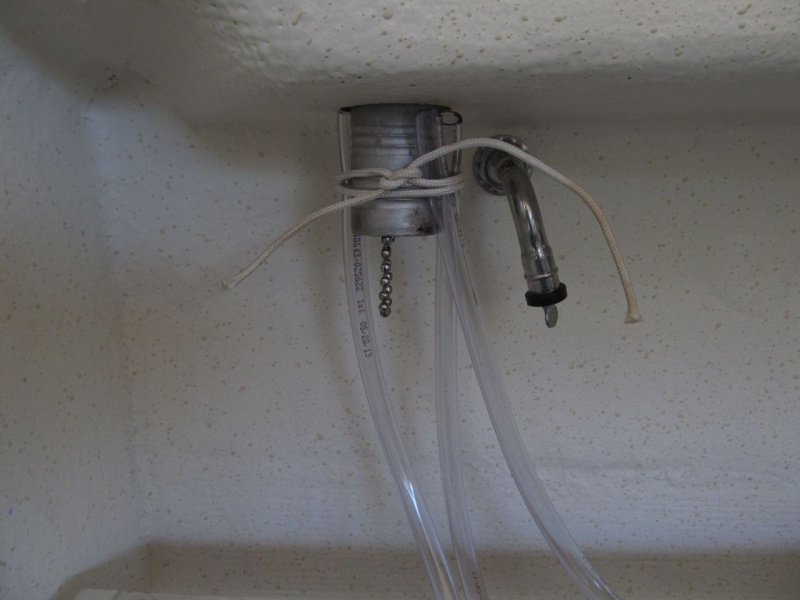

Vent hoses tied to fill fitting (just to have a place to secure them) (vent is sealed off with expanding plug and thumb screw).
Next
Prev
view of supply and sight fittings
resting on hull side, not bottom
how tank was sitting
Vent hoses tied to fill fitting (just to have a place to secure them) (vent is sealed off with expanding plug and thumb screw).
Ran hoses up to currently unused water fill (just to have a place to gather them, nothing to do with the fill in particular), and then with a piece o string tied them in place. The hose compresses slightly so stays there. I also decided to put the jugs into a contractor bag just as a sort of liner in case there are drips when I'm filling or etc.
The water jugs had the little white vent fittings that you push into or pull up from the hole. I removed those and used a 3/8" drill bit to enlarge the holes, then put a couple of wraps of Teflon tape around the nylon fitting and screwed it into the jug. Turning tank upside down there was no leakage (there was very slight drippage without the tape). Of course these won't have that much pressure on them when right-side up. Then pushed hose onto barb.
Decided to add vent hoses since it would be pretty easy and inexpensive. Bought three nylon fittings at the hardware store, 1/4" male NPT to 5/16" hose barb, plus 8' of 5/16" clear hose. Tested friction fit in store - plenty good enough so no hose clamps needed for this setup.
Next
S

Vent hoses tied to fill fitting (just to have a place to secure them) (vent is sealed off with expanding plug and thumb screw).

  • Media owner Sunbeam
  • Date added
Vent hoses tied to fill fitting (just to have a place to secure them) (vent is sealed off with expanding plug and thumb screw).
