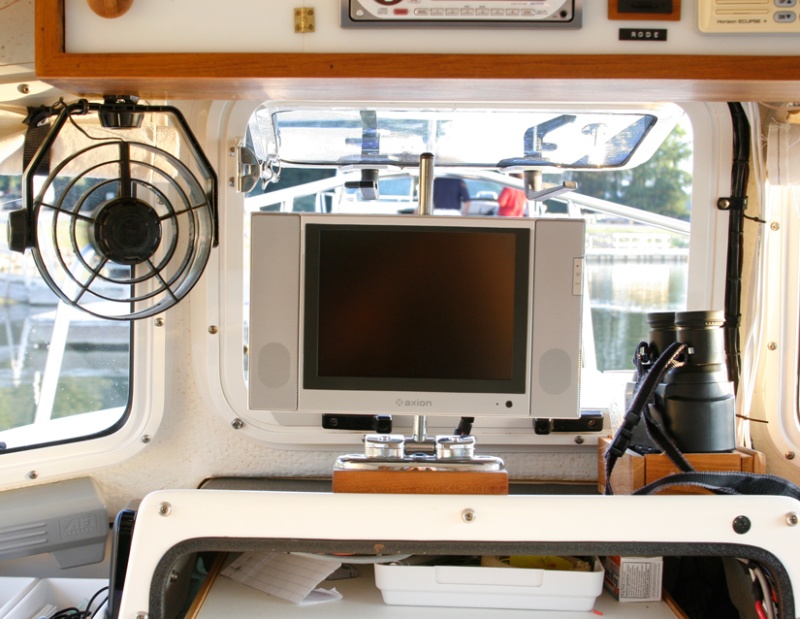

TV-Rotated-to-Viewing-Position: TV is flipped up, rotated and ready to view. Note the Digital Converter Box on the far left of the console stood up on end is bsrely visible and takes up very little space.

LCD-TV-in-Daytime-Light in operation: I found an inexpensive but very rugged mount and raised it slightly so that it stows flat on a rubber mat for shock protection.

Arctec-Rear-Connectors: Simple RF connections from the TV antenna to the TV and Audio / Video Jacks as well.

Arctec Pro-Digital-converter with remote: I selected this converter because of its small size and ability operate directly from 12V power. When off, it operates in analog mode and when on, simply tune the TV to CH 3 and let the converter do the tuning. I pick up 10 stations in clear digital from my home port vs 4-5 stations from my rabbit ears.

TV-Rotated-to-Viewing-Position: TV is flipped up, rotated and ready to view. Note the Digital Converter Box on the far left of the console stood up on end is bsrely visible and takes up very little space.

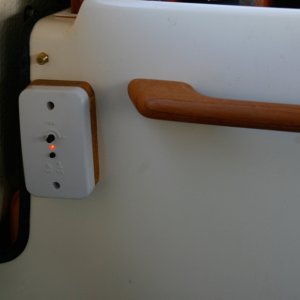

Shakespeare-TV-Amplifier: I redesigned the bulky mount and made a spacer to flush mount the amplifier box out of the way in front of the copilot seat. This box has a variable gain amplifier and ON OFF switch with LED indicator . When the amp is off, the external tv cable input is routed directly to the TV.

R

TV-Rotated-to-Viewing-Position: TV is flipped up, rotated and ready to view. Note the Digital Converter Box on the far left of the console stood up on end is bsrely visible and takes up very little space.

RichardW
Sep 20, 2008
