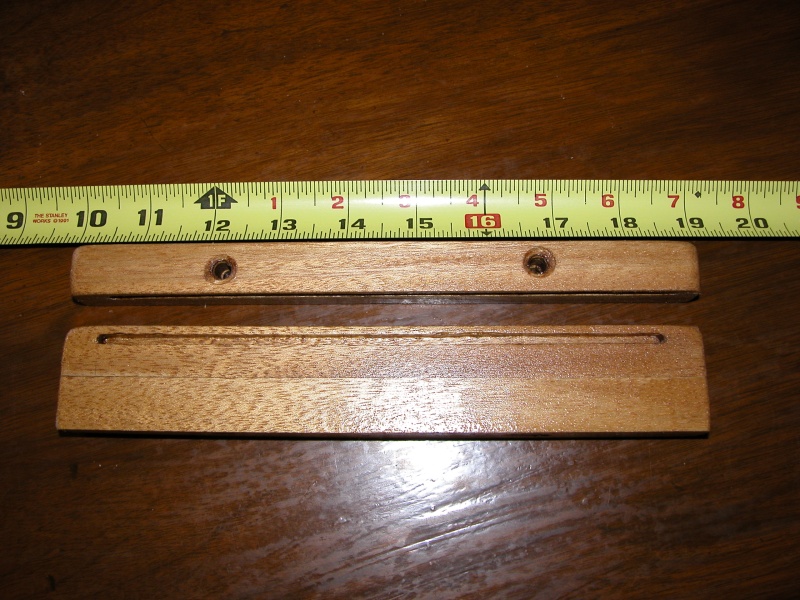

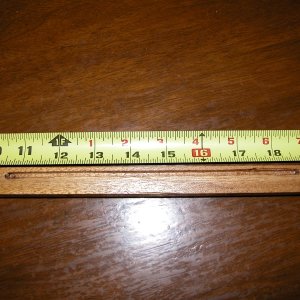

Top view of top guide. Side view of bottom guide which are 2 - 3/4"pieces glued together for the 1 1/2" height needed to clear the breaker switches.
Next
Prev
Top support guide resting on a 3/4" temp. spacer to simulate the cabin setup.

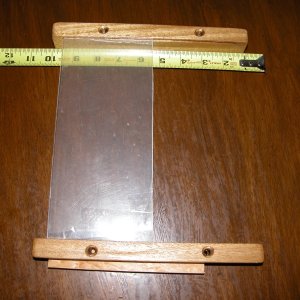

The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.
Small piece of wood under lower guide is a tempory spacer for these pixs. It represents the table support above the AC power panel which is also 3/4" thick.
Top view of top guide. Side view of bottom guide which are 2 - 3/4"pieces glued together for the 1 1/2" height needed to clear the breaker switches.
Side view of AC power panel top guide
Top slide for ac power panel cover. Made from a 3' piece of 3/4" oak finish stock from Home Depot. Datto is with a Dremel tool router bit set 3/16".
