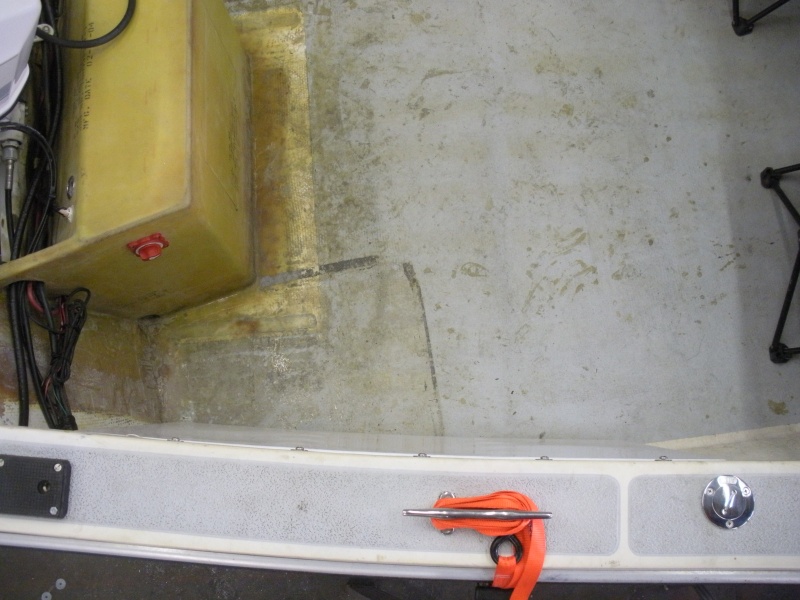

this view shows how the tanks hide up under the side, maximizing deck space, this with the smaller transom box makes for a really big back deck
Next
Prev
Diagram of saddle tank design. So far they have performed well.

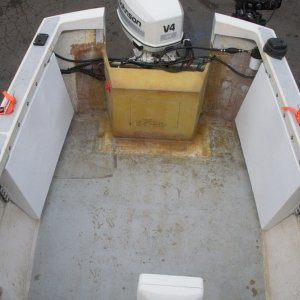

view of the back deck, the powder coated white tanks make me really want to paint the rest of the deck, but that will be this winter, it will look pretty nice when its done
room enough for 4 lawn chairs easily
this view shows how the tanks hide up under the side, maximizing deck space, this with the smaller transom box makes for a really big back deck
the fuel pick ups were not available deep enough for the new tanks, so i had to add some length, just a double ended barb and some boiling water to shrink on the extension, now i can get all the gas out of the tanks

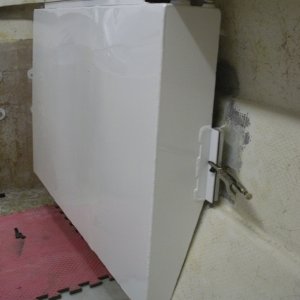

port tank mocked up
port tank mocked up so i can cut all the lines to length and start mounting all the components
