Trim tabs and Mini-Jacker

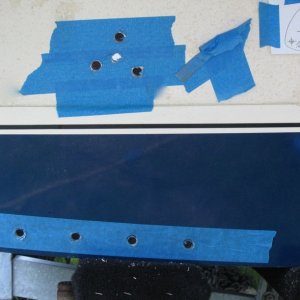

Holes for planes and actuators overdrilled and hollowed out (inner hollowed out area quite a bit larger than visible hole), preparatory to filling with thickened epoxy. The center actuator hole looks "white" because it goes all the way through and you can see "air" in the cockpit behind it. I taped the transom prior to laying out the locations for the various components so that I could make my layout lines on the tape.

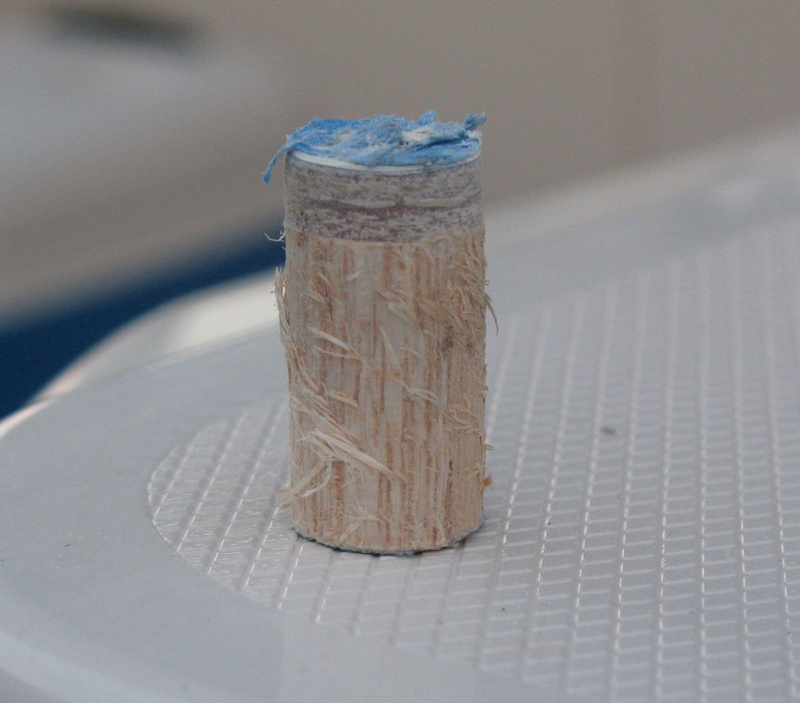

This is a "core sample" of the transom from where I overdrilled the holes for mounting the Mini Jacker. At the top is the outer skin. The reason there is no inner skin on the sample is that I just cut the large hole up to the inner skin but not through it. I only made a fastener-sized (smaller) hole through the inner skin, so it's not attached to the core sample.

Back side of the plate. Since I could pre-mount the black Bennett bracket I was able to use countersunk fasteners and tighten them (vs. needing them to not spin). The additional holes are just for lightening since all that material was not needed.

Bracket backing plate for Bennett trim tab HPU. I wanted to be able to mount it above the starboard fuel tank, for super-efficient use of space -- but this meant I would not be able to lift off the lid. I also wanted to use Weld Mount studs to mount it to the hull side. So I made a Starboard backing plate (the yellow material) and mounted Bennett's HPU bracket to it (black). Now instead of lifting the lid from the HPU (which is not something that is done often), I instead take the yellow plate off the hull side and then move the HPU to where I can take the lid off. I made the two sets of Weld Mount studs different lengths so that it would be easier to get the yellow plate in place (sort of like how two rudder pintles are different lengths).

Hole for zinc

This is a "core sample" of the transom from where I overdrilled the holes for mounting the Mini Jacker. At the top is the outer skin. The reason there is no inner skin on the sample is that I just cut the large hole up to the inner skin but not through it. I only made a fastener-sized (smaller) hole through the inner skin, so it's not attached to the core sample.

After filling with thickened epoxy and letting it cure, I tapped the holes for the fasteners. The reason there are some raggedy bits of tape left on are because I had wanted to save a few of my reference lines. I made the holes in the template with paper punch - that worked well for lining up the upper actuator holes when I went to re-drill.

Holes for planes and actuators overdrilled and hollowed out (inner hollowed out area quite a bit larger than visible hole), preparatory to filling with thickened epoxy. The center actuator hole looks "white" because it goes all the way through and you can see "air" in the cockpit behind it. I taped the transom prior to laying out the locations for the various components so that I could make my layout lines on the tape.

S

This is a "core sample" of the transom from where I overdrilled the holes for mounting the Mini Jacker. At the top is the outer skin. The reason there is no inner skin on the sample is that I just cut the large hole up to the inner skin but not through it. I only made a fastener-sized (smaller) hole through the inner skin, so it's not attached to the core sample.
