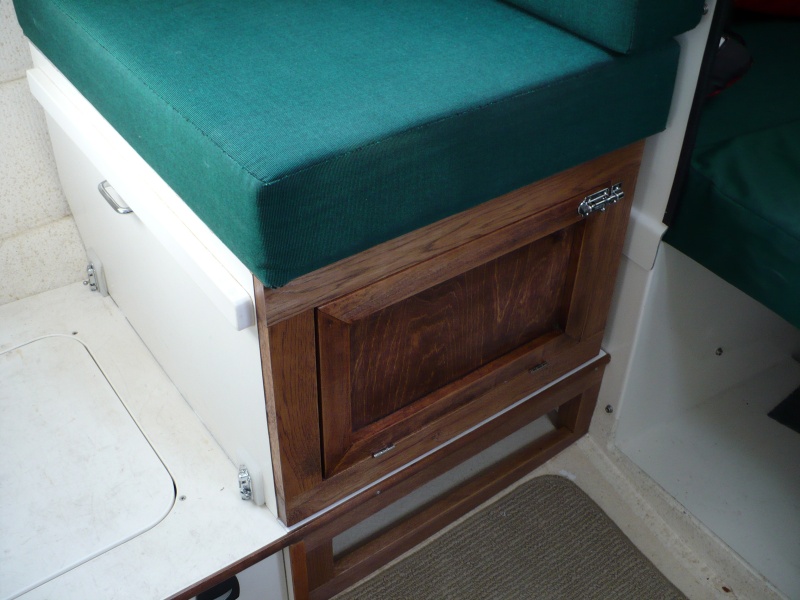

These are Sea Dog slide bolts that hold the box in position. 2 holes drilled in floor.
Next
Prev
Sliding seat in new position. A lumbar pillow is nice to use here. We often sit on a PFD cushion for a better look-out/view. Not pictured here, I added a snap under the table and a small strap snaps into it and then snaps onto the existing cushion snap. This hold the back-rest cushion in place.
I started to build a drawer but did not like the loss of storage space. There is a lot of space in here. The base panel sits inside on little feet that raises it up above the T-Track.
Handle for moving the box. It slides very easy on the plastic rails.
These are Sea Dog slide bolts that hold the box in position. 2 holes drilled in floor.
Most of the seat was recycled from the original seat box. Front, side and bottom panels were added along with the floor/deck. All painted to match.

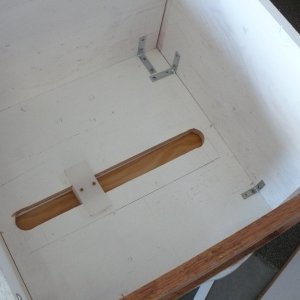

The Plastic "T" (made from cutting board) bolts down to/thru the floor. This keeps the seat box attached to the boat. Slide bolts hold the box in position, forward/aft side to side. A wood tray/cap goes over the "T", so it does not get in the way of gear storage. Or, if there is a drawer, the drawer will glide over the it. This system workes really well and is very simple to build.
This worked really well. Everything mounted up in the boat perfect and this simple design does the job without complex hardware.
Next
M

These are Sea Dog slide bolts that hold the box in position. 2 holes drilled in floor.

These are Sea Dog slide bolts that hold the box in position. 2 holes drilled in floor.
