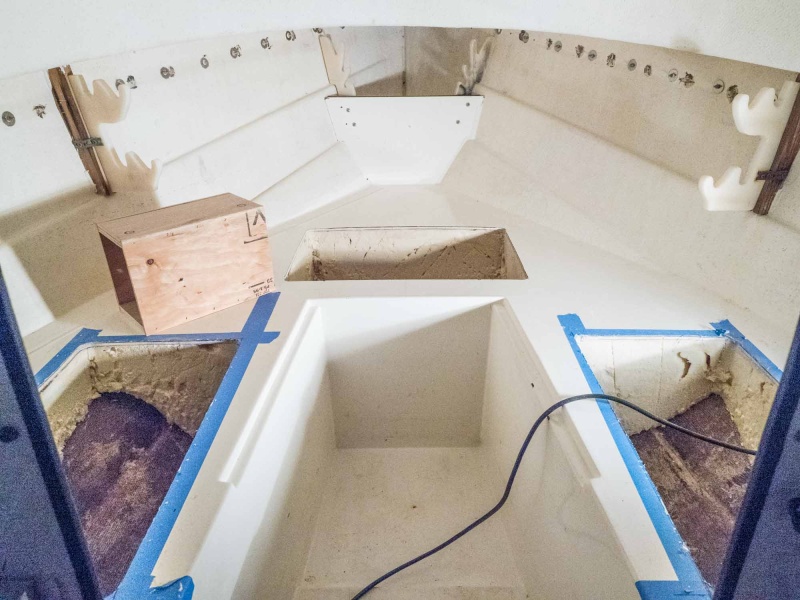

The plywood box is a mockup of a Group 31 battery. I may put batteries in here.
Next
Prev
There was a huge glob of the mystery substance on the hull, on the port side of the portable toilet storage area. It was in the corner and broke away easily. It appears like someone dumped a pile of it on the hull, then lowered the berth section on top of it, and this was squeezed out. It was damp underneath.
This pink mystery substance on the bottom of the hull covers the keel. It looks to have been sort of smeared haphazardly in place. Looks like bondo, smells like bondo... What is the purpose of this? Edit: I've since been told by the C-Dory factory that this is Thixo and it was added for "reinforcement". I really don't see what it's reinforcing. It bothers me that I can't see the glass over the keel so I'm considering removing it and replacing it with some epoxy and mat.
I used a metal pipe with one end sharpened as a coring tool to remove the foam under the portable toilet storage area. The wooden dowel is used to push the foam core plugs out of the pipe. The end goal was a tunnel that passes under the inspection hole and to the other side, just forward of the cored hull bottom, for battery cables to pass through.
The plywood box is a mockup of a Group 31 battery. I may put batteries in here.
I used a large chisel and a hammer to pry pieces out. The foam was dry until I got to the very bottom, next to the hull, where it was damp.
I used a hand saw to cut vertically around the hatch openings, then used a recipro saw to cut the interior mass of foam into sections for removal.
I used a small circular saw and a jig saw to cut the openings.
Next
P

The plywood box is a mockup of a Group 31 battery. I may put batteries in here.

  • Media owner pcg
  • Date added
The plywood box is a mockup of a Group 31 battery. I may put batteries in here.
Click to expand...
There are no comments to display.

Media information

Category
Foam removal
Album
My boat had no inspection hole and no obvious hole of any kind where foam could have been injected. I decided to drill an inspection hole to see what was in there.
