The kerosene tank must be installed below the heater, to ensure proper drainage of the return line (black). The white line is the pickup. The clear tube is the vent line and must be above the tank to prevent leakage on healing.
Next
Prev
Forgot to get a photo of the thru-hull so this will have to do..its the larger one just behind the sink drain.
Shadows create an optical illusion, the wiring and cables are actually separated from the exhaust by a good 4 inches. The exhaust port also has a guard tacked to the top of it so really it's impossible for the wires to come into contact even if somehow they fell or sagged.
Intake and exhaust ducting (exhaust line runs inside of the larger diameter intake duct), wrapped in cloth insulation, must be 3' or less. Mine is probably about 2.75 ft at this location.
The kerosene tank must be installed below the heater, to ensure proper drainage of the return line (black). The white line is the pickup. The clear tube is the vent line and must be above the tank to prevent leakage on healing.
Wallas 1300 installed under galley just to the right of the drawers.
Twin Bridges retreive dock
Back at the marina about an hour before opening.
Next
M

The kerosene tank must be installed below the heater, to ensure proper drainage of the return line (black). The white line is the pickup. The clear tube is the vent line and must be above the tank to prevent leakage on healing.

  • Media owner MikeR
  • Date added

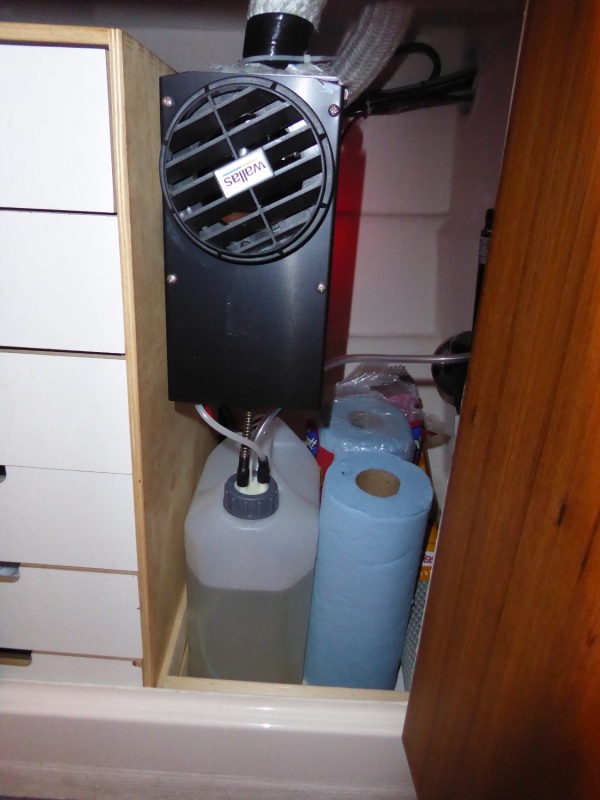

The kerosene tank must be installed below the heater, to ensure proper drainage of the return line (black). The white line is the pickup. The clear tube is the vent line and must be above the tank to prevent leakage on healing.
Click to expand...
There are no comments to display.

Media information

Category
Anacortes Wallas Install Nov 2017
Album
After working on the Wallas installation for 4 hours on the workstand, I decided to launch and finish the project on the water in Anacortes. Who's that in the background?
