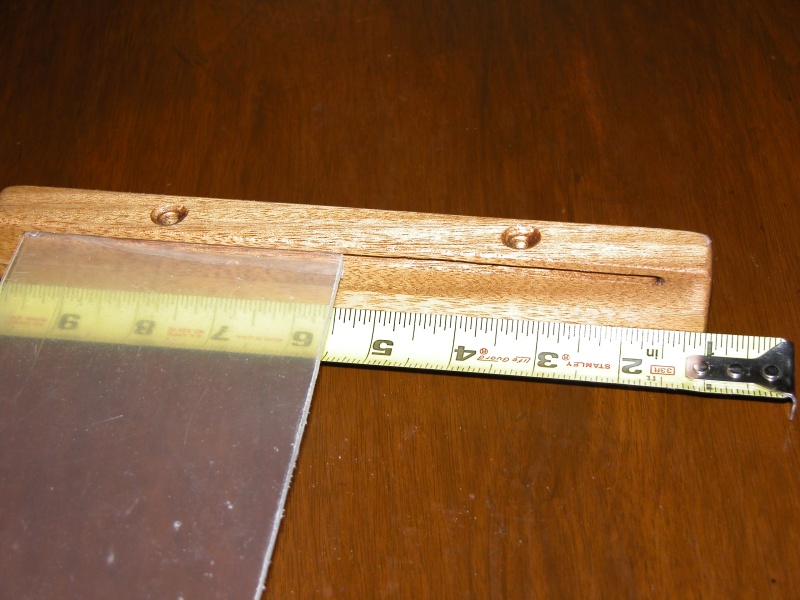

The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.
Next
Prev
AC Power Panel cover_'a' view. Top guide base had to be hand notched for table top support mounting bolt. Top was placed abt 1/16" above bottom edge to allow enough support when mounting screw hole was pre-drilled.
AC POWER PANEL COVER completed
Top support guide resting on a 3/4" temp. spacer to simulate the cabin setup.
The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.
Small piece of wood under lower guide is a tempory spacer for these pixs. It represents the table support above the AC power panel which is also 3/4" thick.
Top view of top guide. Side view of bottom guide which are 2 - 3/4"pieces glued together for the 1 1/2" height needed to clear the breaker switches.
Side view of AC power panel top guide
Next
S

The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.

  • Media owner Sea Angel
  • Date added
The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.
