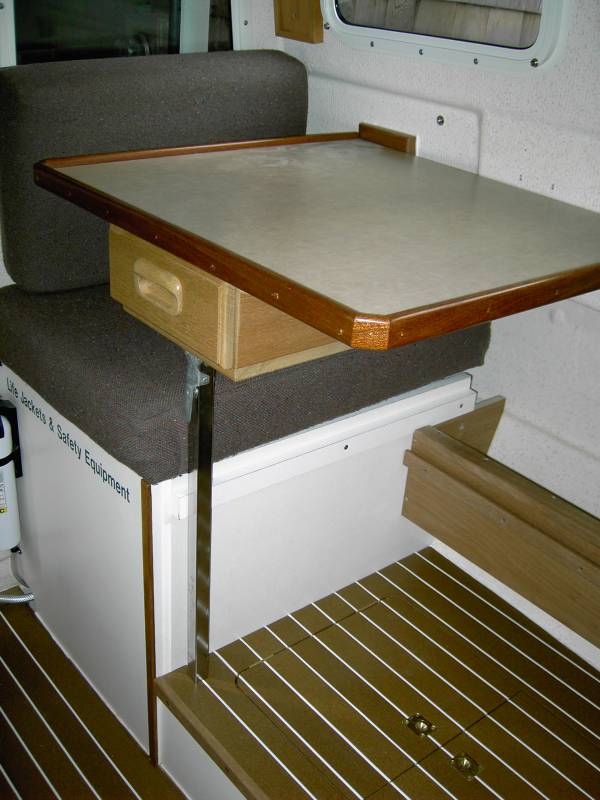

Table in aft position over the top of the rear seat. This setup blocks use of the rear seat when the Barber Chair faces forward.
Next
Prev
Reused floor from under table is now the front of the new Barber Chair seat box that's in the aft position. Seat slides on furniture glides.
The hasp in the closed position locking the seat in the aft position. Area under seat to left is the storage compartment under the table.
Seat moved aft. Wooden bumper installed on bulkhead keeps seat box from rubbing on bolt heads below. Bin front end is in center of photo.
Table in aft position over the top of the rear seat. This setup blocks use of the rear seat when the Barber Chair faces forward.
Side bin with slot. Bin runs under gunnel between aft seat front and forward bulkhead. Seat T bar runs back and forth in track.
Extra table brackets to hold seat in standard position and aft position. Only two of us and I didn't want to cut table or loose drawer under top.
Aft end of forward seat. Slot in mahogany is slide for poly T shaped piece that is fastened onto sliding seat box. Mahogany is bin.
Next
L

Table in aft position over the top of the rear seat. This setup blocks use of the rear seat when the Barber Chair faces forward.

Table in aft position over the top of the rear seat. This setup blocks use of the rear seat when the Barber Chair faces forward.
