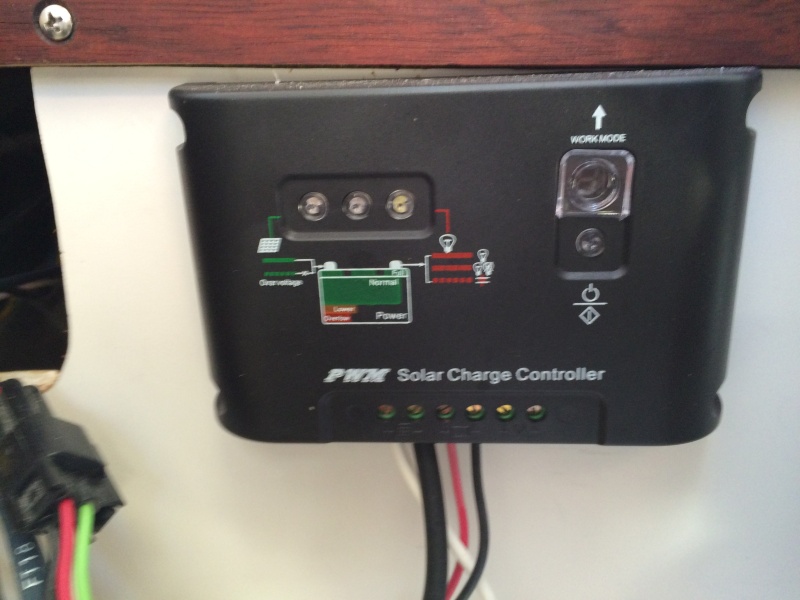

Solar controller for 100 watt solar panel that can be attached to cabin top. I use this when no AC mains are available. It charges the battery of course.
Next
Prev
Solar controller for 100 watt solar panel that can be attached to cabin top. I use this when no AC mains are available. It charges the battery of course.
Permissive bus. Turning on chart plotter allows other devices like radar to be turned on.
Negative DC bus.
Positive DC bus. Fed from forward battery.

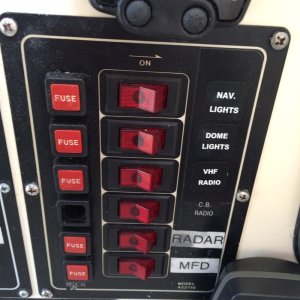

12 V DC seadog fused panel with switches. CB radio position is not functioning. MFD stands for "multifuncional Display".
Seadog fused panel and switches. The troll master is not functioning. The wiring exists if you want one.
