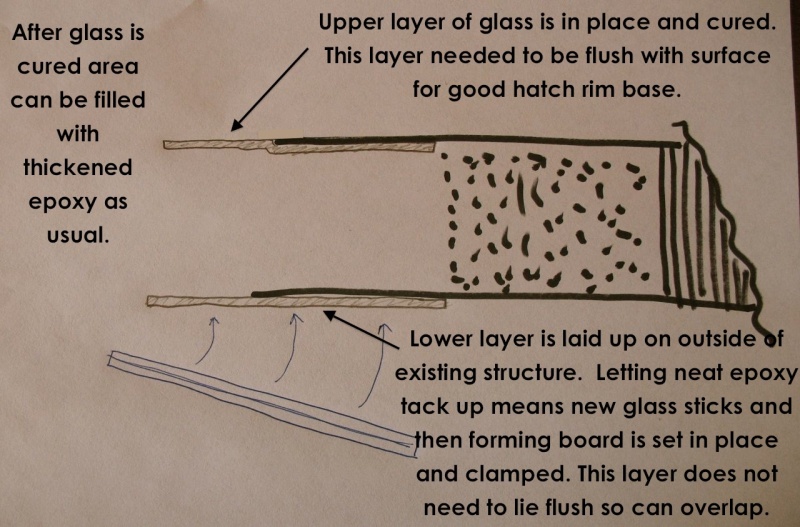

Sketch of the plan for new lower skin, also showing new upper skin already in place.
Next
Prev
Fiberglass backing plate added to cleat. First, core removed around fastener perimeters, then re-filled with thickened epoxy (hole in deck not enlarged; work done from below). Next, backing plate set in place with "mush" of thickened epoxy. Then holes redrilled through all and cleats re-bedded with butyl tape and re-fastened with new, 316 stainless fasteners.
Cleaned out, prepping for next steps.
Underside, un-annotated (easier to see).
Sketch of the plan for new lower skin, also showing new upper skin already in place.
Sketch of the plan for new upper layer.
Detail showing placement in relationship to deck boss. Note for determining placement: Hatch with lid is asymmetrically different than hatch rim alone.
New hatch, overview. Key was to not have the hatch overlap the deck "boss" on either after corner.
