Prev

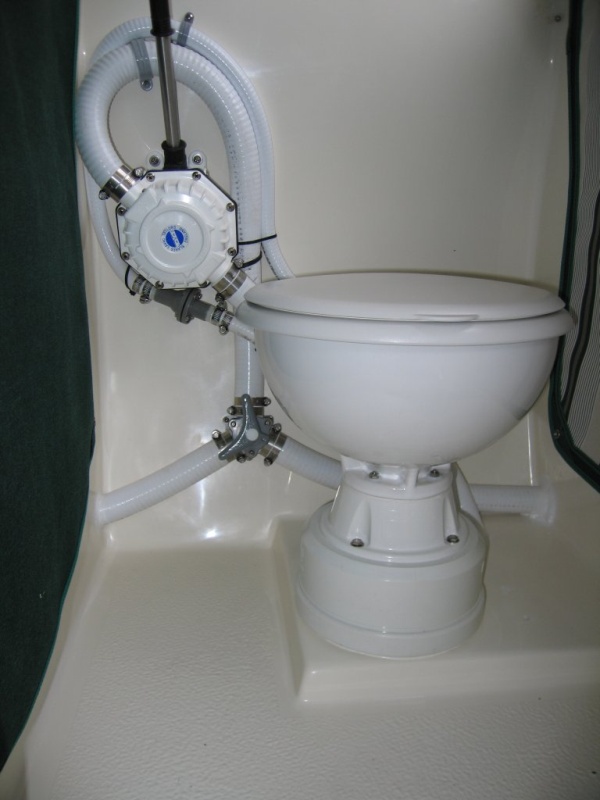

(Sea Skipper) Lavac vacuum head with manual waste discharge pump. 2nd Y valve (hidden behind head) is used to route suction line to a bilge strainer mounted below cabin steps for use as an emergency bilge pump. Head is mounted at a comfortable height on an 8? PVC pipe cap.
Next
Prev
Batteries are installed below the deck hatches to keep weight low and free up storage space in transom - house bank shown. Solenoid operated battery switches are remotely controlled from the helm station. Truss mounted to underside of deck hatch improves seal by preventing ends of hatch from springing upwards. The truss is designed to bend the ends of the hatch downward about 1/16" which flattens out when dogged closed.
(Sea Skipper) Two speed shower fan
Single (window) turn catch located at base of shower door opposite the hinge side will hold lower part of door tight against the sealing gasket eliminating "all" leaks. Several 1/8" drain holes were drilled in the aluminum door frame just above the lower gasket to duct the small amount of water that collects between door and frame back to shower stall. The catch was slightly modified to permit opening by screw driver from the outside if necessary and for correct spacing.
(Sea Skipper) Lavac vacuum head with manual waste discharge pump. 2nd Y valve (hidden behind head) is used to route suction line to a bilge strainer mounted below cabin steps for use as an emergency bilge pump. Head is mounted at a comfortable height on an 8? PVC pipe cap.
(Sea Skipper) Galley unit ? Wallas stove located toward front of cabinet leaves space for microwave behind. Microwave raised 1" so door can be opened over stove top.
(Sea Skipper)
(Sea Skipper) Computer navigation station connected by serial cable to network NMEA data
Next
S

(Sea Skipper) Lavac vacuum head with manual waste discharge pump. 2nd Y valve (hidden behind head) is used to route suction line to a bilge strainer mounted below cabin steps for use as an emergency bilge pump. Head is mounted at a comfortable height on an 8? PVC pipe cap.

(Sea Skipper) Lavac vacuum head with manual waste discharge pump. 2nd Y valve (hidden behind head) is used to route suction line to a bilge strainer mounted below cabin steps for use as an emergency bilge pump. Head is mounted at a comfortable height on an 8? PVC pipe cap.
