Sea Angel's Battery Power Meter - 2 The meter is centered in front of the stove with plenty of room behind it for the harness routing with a 6" service loop.

  • Media owner Sea Angel
  • Date added

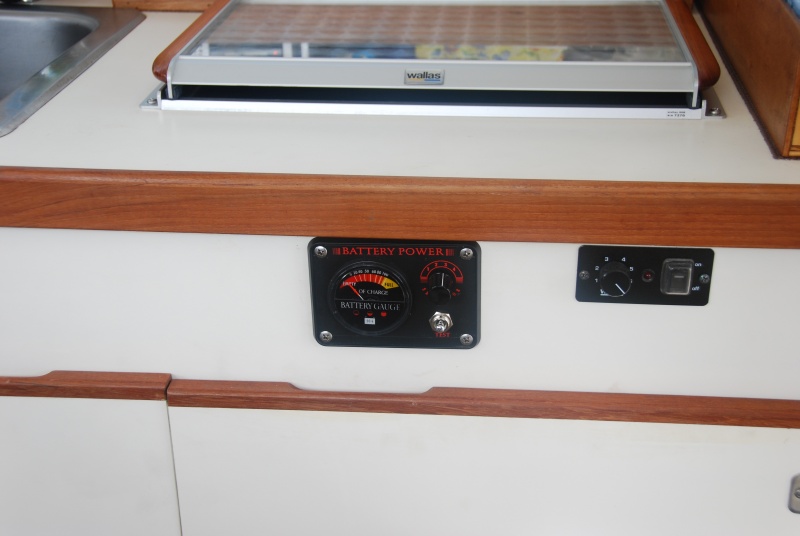

Sea Angel's Battery Power Meter - 2

The meter is centered in front of the stove with plenty of room behind it for the harness routing with a 6" service loop.
Click to expand...
There are no comments to display.

Media information

Category
Sea Angel's Battery Power Meter
Album
Sea Angel's Battery Power Meter - 1 The 4 position switch allows me to test the existing 3 batteries and to add a 2nd house battery that can also be tested (in the future). The tester is disconnected until the spring loaded 'test' switch is pushed down. The 4 conducter harness is run behind the head, following the existing harness bundle to the stern, directly (fused) to each battery.
