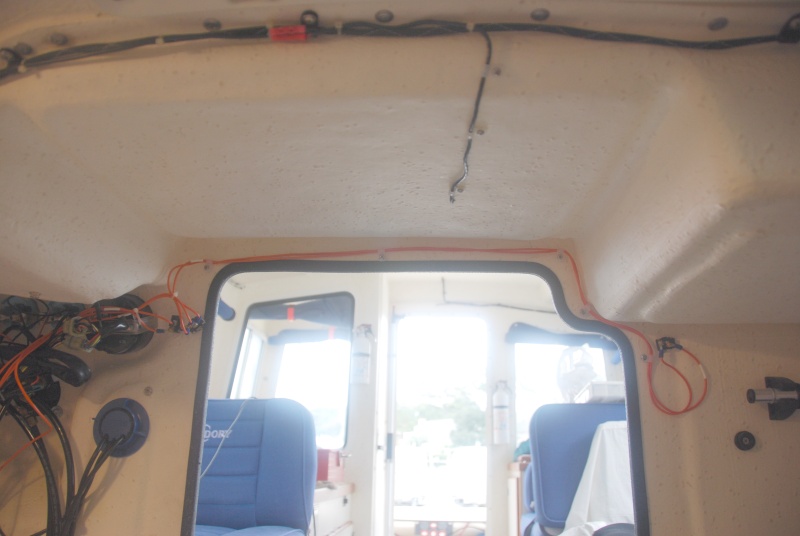

Sea Angel's backside view of momentary wiper control switches. The port switches are wired in parallel. Each switch is wired across/parallel to their main respective wiper switch.

PIX shows the port side original 11.5" SS Deluxe wiper with the replacement arm. The new 14" wiper is now installed. It's adjusted parallel to the outside edge of the window and centered in its height.

Sea Angel Mate's momentary port wiper control wiring.

Sea Angel's Port(right) & Starboard (left) momentary wiper control switches' wiring.

Sea Angel's backside view of momentary wiper control switches. The port switches are wired in parallel. Each switch is wired across/parallel to their main respective wiper switch.

Sea Angel's Port/Mate's momentary wiper control switch to the left of the V-Berth cover snap. Mate gives this a high approval rating. Label is soon to follow.

Sea Angel's Port & Starboard momentary wiper control switches - beside the digital port engine instrument guage & above the NAVMAN cover. These preclude having to push on-off the main wiper switches. Labels to follow.

S

Sea Angel's backside view of momentary wiper control switches. The port switches are wired in parallel. Each switch is wired across/parallel to their main respective wiper switch.

Sea Angel
Oct 30, 2009
