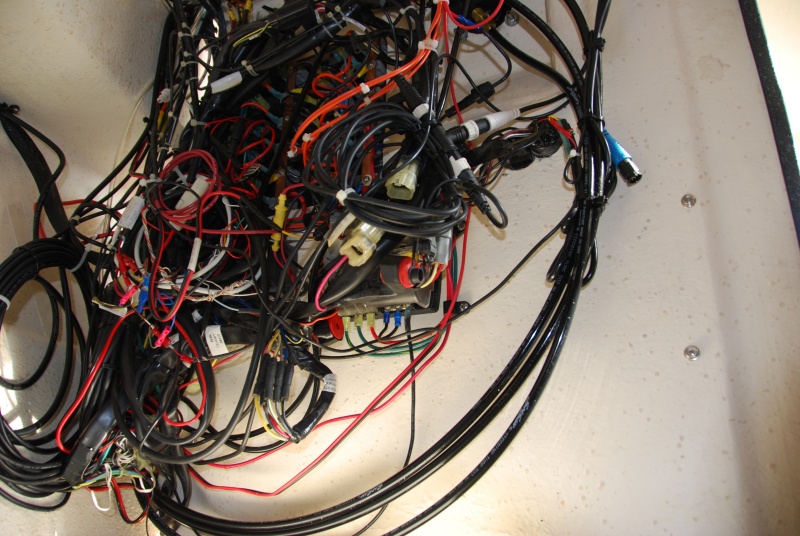

Sea Angel's (2012-12-14) Before installation view for the power distribution expansion. Such a wiring mess to refine and work with. I hope to unroll all those cables and either resize or relocated. The 2 engine harness cables will be the most challenging.

$Sea Angel\'s Secondary AUX 6 ckt DC power block & 10x ground buss 2a. The rectanguliar 'bar' above the square Secondary AUX DC power panel is a 10X #8-32 negative ground buss bar. It has a plastic removeable protective push on cover. It is strapped to the main 12 ckt MAIN AUX Negative ground stud post with a copper link. The black "cables" laying above the power blocks are the steering's hydraulic lines.$

$Sea Angel\'s Secondary AUX 6 ckt DC power block & 10x ground buss 1. The square block is the 12VDC Secondary AUX 12 VDC ATC fuse holder type Power Panel without ground strips and quick connect 'tabs' for the loads. The other end of red lead is connected to the 12VDC input connection (stud) of the Main Aux, 12 ckt fuse panel w/ ground strips.$

Sea Angel's (2012-12-14) Before installation view for the power distribution expansion. Such a wiring mess to refine and work with. I hope to unroll all those cables and either resize or relocated. The 2 engine harness cables will be the most challenging.
