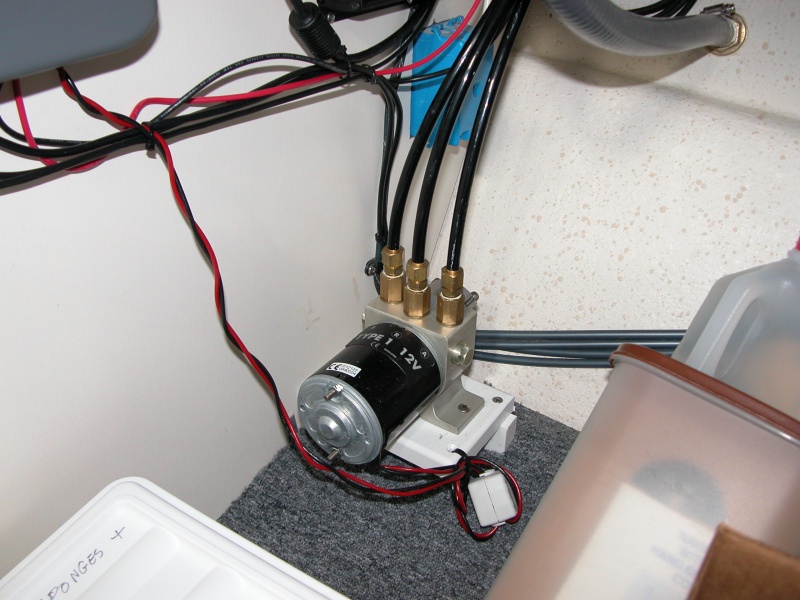

(Sea Angel) ST6001 Autopilot hydraulic pump located under the sink. There is minimal noise heard from this location.
Next
Prev
Sea Angel's AutoPilot ST6001 Controller for the S1G SmartPilot CPU with the Fluxgate Compass readout.
Sea Angel's SmartPilot wiring. Notice all the terminals are color coded with the appropriate cables; except, the BiDirectional Hydrolic Pump. Its terminal is labeled "A" & "B". Beware of the leads position if you should have to remove them. This hookup has the Red wire to the "A" Terminal.
(Sea Angel) ST6001 Autopilot hydraulic pump located under the sink. There is minimal noise heard from this location.
(Sea Angel) S1G, Autopilot CPU located under the sink. The black box to the right is the GARMIN "GSD-20" transducer module. The hydraulic pump for the autopilot can be seen at the bottom right of the pix.
(Sea Angel) ST6001 Autopilot CPU and hydraulic pump located under sink. Fluxgate gyro-compass is on other side of refrigerator cabinet in floor compartment mounted on the forward bulkhead at the bilge level.
