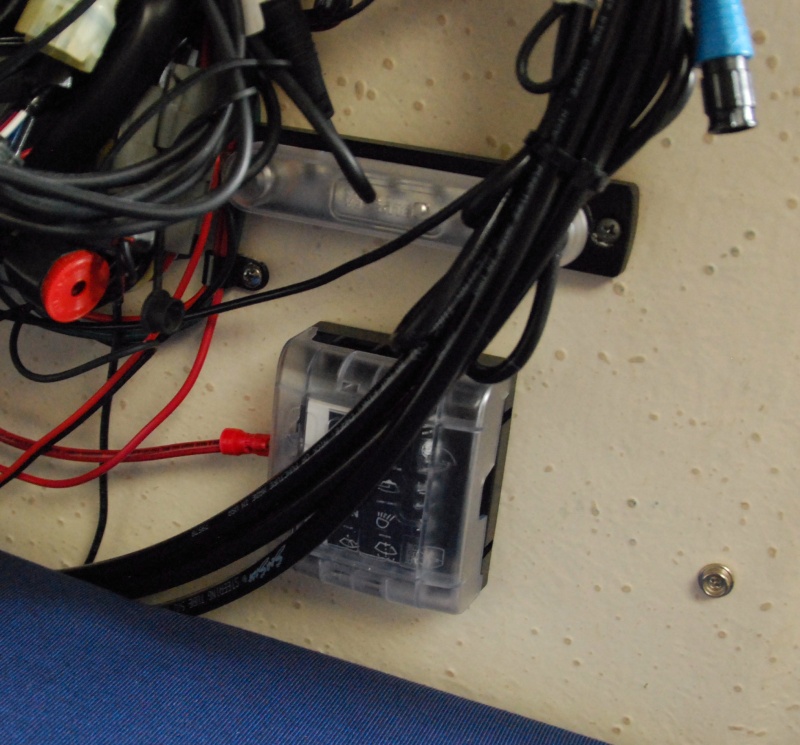

Sea Angel\'s Secondary AUX 6 ckt DC power block & 10x ground buss 2a. The rectanguliar 'bar' above the square Secondary AUX DC power panel is a 10X #8-32 negative ground buss bar. It has a plastic removeable protective push on cover. It is strapped to the main 12 ckt MAIN AUX Negative ground stud post with a copper link.
The black "cables" laying above the power blocks are the steering's hydraulic lines.
