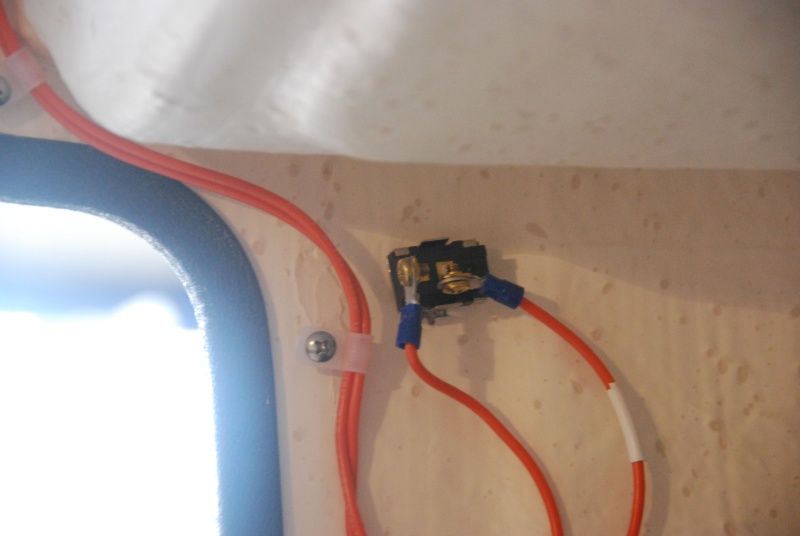

Sea Angel Mate's momentary port wiper control wiring.
Next
Prev
Standard 11.5" wipers and arms replaced with Pantographic arms and 14" SS Deluxe wipers. Adjustment of the 14" wiper position is straight forward with plenty of room for a full sweep. Adjust it parallel to the side in the park position. Either the SS Deluxe or SS Standard wiper(cheaper) could be used.
PIX shows the starboard side original 11.5" SS Deluxe wiper with the replacement arm. New 14" wiper is now installed. It's adjusted parallel to the outside edge of the window also it's centered in height.
PIX shows the port side original 11.5" SS Deluxe wiper with the replacement arm. The new 14" wiper is now installed. It's adjusted parallel to the outside edge of the window and centered in its height.
Sea Angel Mate's momentary port wiper control wiring.
Sea Angel's Port(right) & Starboard (left) momentary wiper control switches' wiring.
Sea Angel's backside view of momentary wiper control switches. The port switches are wired in parallel. Each switch is wired across/parallel to their main respective wiper switch.
Sea Angel's Port/Mate's momentary wiper control switch to the left of the V-Berth cover snap. Mate gives this a high approval rating. Label is soon to follow.
