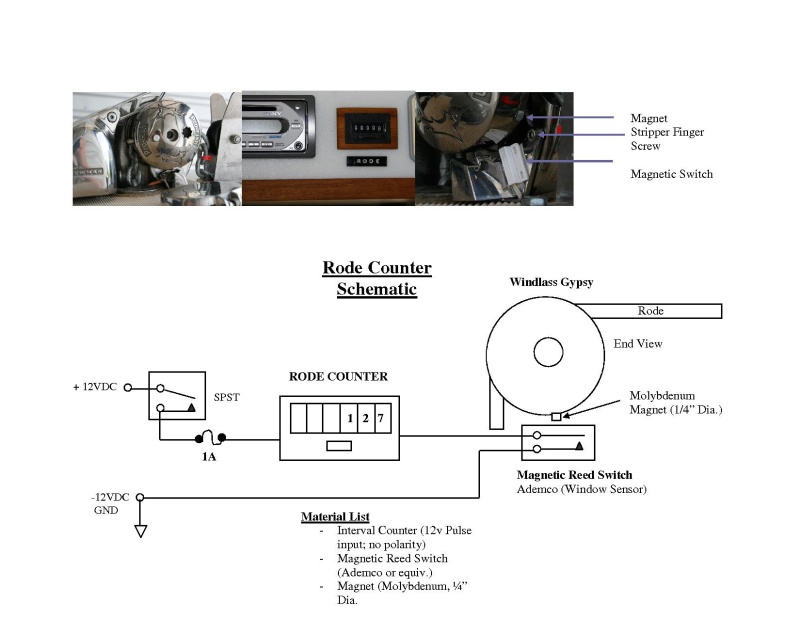

Rode Counter Schematic
Delicate reed switch wire is protected by running it thru a length of copper tubing flared at both ends and secured underneath by cable clamps. Note Wire tie on chain to signal anchor near front roller. I used color coded ties every 25 feet to get a visual indication of rode deployed.
Rode-Counter in overhead console
Reed swich is mounted on stripper finger bracket with 4200
Red trace is Navigation route to FLINT RIVER entrance. I passed entrance and turned toward FLINT RIVER waypoint. See Lollipop on Furuno Radar with the circle around the physical entrance to the FLINT.
waypoint Lollipop to entrance of FLINT RIVER transmitted from the Garmin 188C to the Furuno 1715 radar.
Moving from the Tennessee River to the adjoining Flint River dead ahead. The GPS route to the FLINT RIVER waypoint is shown on the GPS by a red trace. The Furuno 1715 Radar is interfaced to the Garmin GPS via communication ports. The radar displays a lollipop with the circle showing the entrance corresponding to the GPS waypoint. See the close ups of the GPS and Radar screen for better detail.
