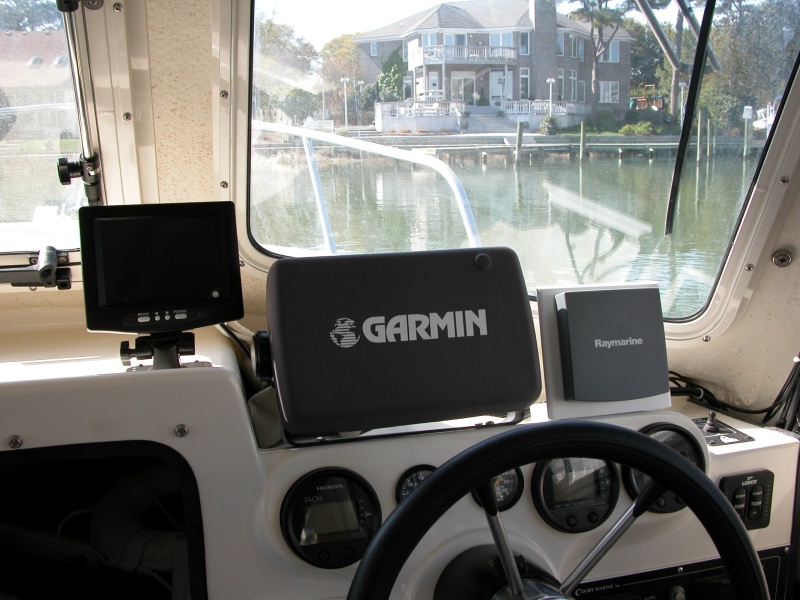

Rear view cockpit camera LCD monitor positioned to the left of the GARMIN 2006C display. Though the location was best for viewing, it proved not so because of water spray when the center window is open.
Prev
View underway on Linkhorn Bay, Va. Beach, VA.
CCD camera above the cabin door. Horizontal field of view = 90 deg., vert. field of view = 20 deg.. It has a built in mic within the camera head body. Volume can be muted or controlled at the monitor under the 'MODE' function - very handy when running with the door closed. The wedge is a cedar shingle cut to provide the necessary vert. angular range for the bracket supplied. A single multiconductor small cable is fed straight into the cabin and routed along the port side wiring harness directly to the monitor, where the camera also gets its power.
5.7" LCD color monitor system to view the blind spot areas behind the helm, through head window area, and also allows you to listen for anything going on in the cockpit area.
Rear view cockpit camera LCD monitor positioned to the left of the GARMIN 2006C display. Though the location was best for viewing, it proved not so because of water spray when the center window is open.
Next
S

Rear view cockpit camera LCD monitor positioned to the left of the GARMIN 2006C display. Though the location was best for viewing, it proved not so because of water spray when the center window is open.

  • Media owner Sea Angel
  • Date added
Rear view cockpit camera LCD monitor positioned to the left of the GARMIN 2006C display. Though the location was best for viewing, it proved not so because of water spray when the center window is open.
Click to expand...
There are no comments to display.

Media information

Category
Sea Angel Backup Camera
Album
Backup system LCD color monitor beside GARMIN 2006C. Audio from camera mic is fed to monitor.
