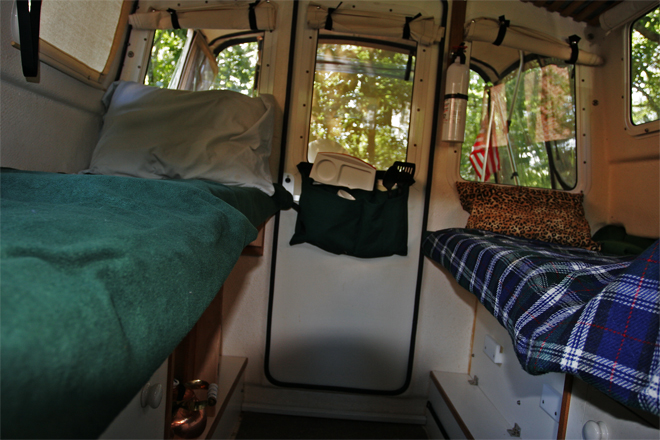

Port and Starboard Beds looking aft. The kitchen storage pocket is removed from the helm seat back and snapped to the cabin door when the starboard bed is setup.
Prev
The helm seatback is quickly removed with a large knob on each side, I drilled out the aluminum rivets and used a tee nut (with brad holes) to accept the 5/16-18 bolt. The teenut is held in place with JB weld.
Starboard side made up into 6 ft + bed by lowering galley covers, adding extender cushion and support, then removing seatback and moving to front of bottom. Seat back is held by strap around steering wheel snapped into the existing snaps on the seatback. A support slides out from under seat bottom to support the seatback; very simple to deploy.
Port Bed and Seat shown with cushion to extend width. With extender cushion and support removed, port side is a bench seat as in the original commuter configuration, Copilot seat modified to slide and rotates.
Port and Starboard Beds looking aft. The kitchen storage pocket is removed from the helm seat back and snapped to the cabin door when the starboard bed is setup.
