My Wallas is a 95D. I don't know if they are all the same location with fuses?
Next
Prev
My Wallas is a 95D. I don't know if they are all the same location with fuses?

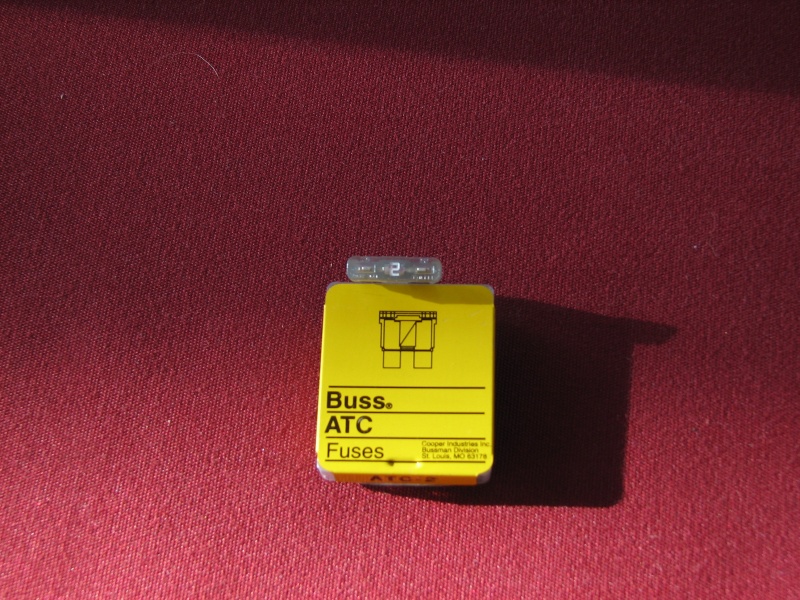

Two amp blade fuse. .50 at local autoparts store. Between the battery and the wallas there is a 15 amp blade fuse.
The circuit board with the fuse is facing out towards the open door. Almost like they planned on changing the fuse at some point.
The view on all of these is looking in the aft galley door to starboard. The wallas is directly above.
You can see the 2 amp fuse here. Just off center to lower right with the 2 on it.
