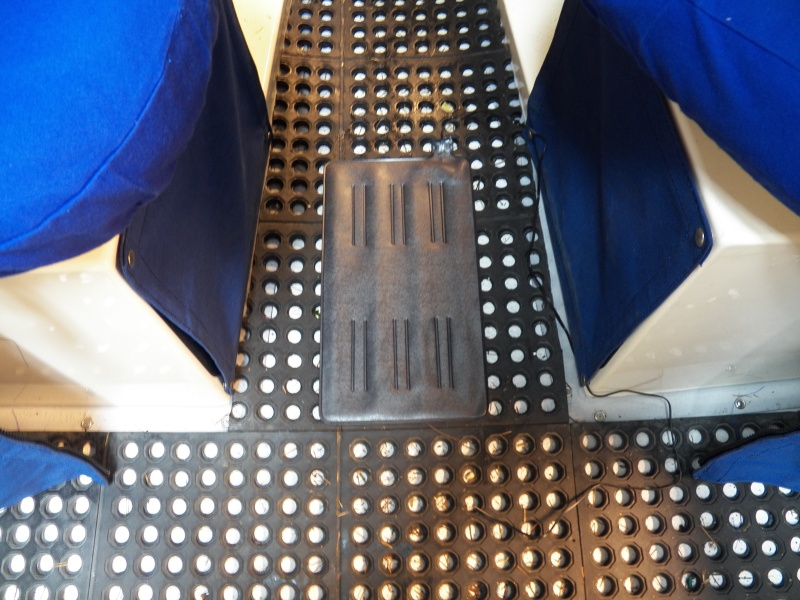

My security system. It is a waterproof pressure sensitive mat that will sound the fog horn (through a relay) when the alarm is activated.

This is what it looks like when under the rubber matting.

My security system. It is a waterproof pressure sensitive mat that will sound the fog horn (through a relay) when the alarm is activated.

Here is the battery gauge in action. I can use it to monitor the house battery in the evening. It is controlled by the push button switch beneath it.

This is the scrap fiberglass from the cut outs that I did for the heater. That is what I use to make panels for little projects. The little piece is going to be a cover for a reading light that I am adding to the V berth.

This panel is my gas shut off, a cigarette lighter socket (for cell phone charger, etc.), and a digital battery charge indicator with a push button switch.

I found that these Posi-Locks work great when dealing with tiny wires, like for LED lights, etc. This is my NMEA VHF/GPS connection, which is AWG 22 wire. Easily changed around and splicing several wires together is simple (like the top one with blue and silver both going to ground).

M

My security system. It is a waterproof pressure sensitive mat that will sound the fog horn (through a relay) when the alarm is activated.

Marco Flamingo
Mar 24, 2016
