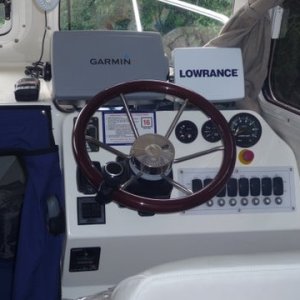

Moved Garmin 4208 over added a Lowrance multifunction GPS with a second transducer, added Garmin HD radar and Garmin fuel managment to the 4208 package.Wired in GPS output from the )183 cable for GPS position output to my Coastal Explorer to show the boat position on the laptop via the Coastal Explorer software. Added portable USB type GPS puck velcroed down near the windshield so my laptop running Coastal Explorer can work as a third independent nav device while in cruising mode
Next
Prev
P1020163

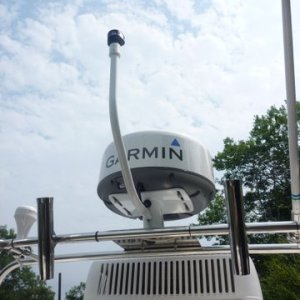

Garmin 18 HD radar added for Maine trip August 2010
you can just barely see the antenna for the Lowrance GPS
Moved Garmin 4208 over added a Lowrance multifunction GPS with a second transducer, added Garmin HD radar and Garmin fuel managment to the 4208 package.Wired in GPS output from the )183 cable for GPS position output to my Coastal Explorer to show the boat position on the laptop via the Coastal Explorer software. Added portable USB type GPS puck velcroed down near the windshield so my laptop running Coastal Explorer can work as a third independent nav device while in cruising mode

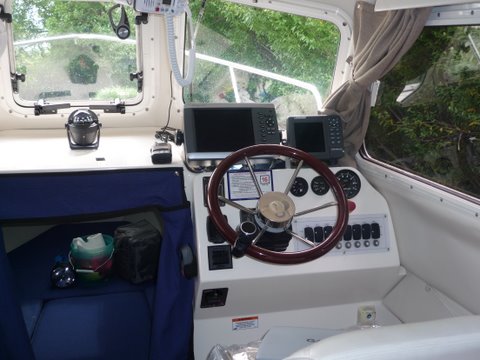

Helm changes, added second gps and transducer, got MSSI number for VHF,also wired into GPS 0183 cable to provide position of boat. Left autopilot as is it was to just maintain a heading

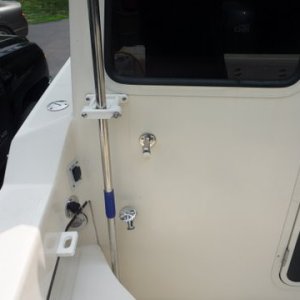

Added a faucet to my fresh water pump and tank.Just t'd off the output side of the fresh water pump. Easy to empty tank now can use for a cockpit shower. But the best is using it to wash down,the anchor chain or the scum line boat and brakes after retriving from salt water and even giving the motor a fast flush.We carry a rollup 50' hose to get water or use it for wash down purposes. Handy spot for our boat hook,gaff, net, scrub brush handle made by Slo lo marine. A short piece of pvc pipe which is 5200'ed to the floor keeps the bottom from moving around. My pliers holder for fishing expeditions is the rectangular block with th oval hole. Also the switch and outlet for my raw water washdown which we have elimanated the thru hull and have a hose with a screened pickup which we put overboard connected to the pump for the raw water wash downs intake.
Added Garmin HD radar to our 4208 seems to work well, also added a very bright led all around light looks great works well, got the fuel management paddle wheel added,plus a second Lowrance multi function Gps for back up.
Next
W

Moved Garmin 4208 over added a Lowrance multifunction GPS with a second transducer, added Garmin HD radar and Garmin fuel managment to the 4208 package.Wired in GPS output from the )183 cable for GPS position output to my Coastal Explorer to show the boat position on the laptop via the Coastal Explorer software. Added portable USB type GPS puck velcroed down near the windshield so my laptop running Coastal Explorer can work as a third independent nav device while in cruising mode

  • Media owner Will-C
  • Date added
Moved Garmin 4208 over added a Lowrance multifunction GPS with a second transducer, added Garmin HD radar and Garmin fuel managment to the 4208 package.Wired in GPS output from the )183 cable for GPS position output to my Coastal Explorer to show the boat position on the laptop via the Coastal Explorer software. Added portable USB type GPS puck velcroed down near the windshield so my laptop running Coastal Explorer can work as a third independent nav device while in cruising mode
