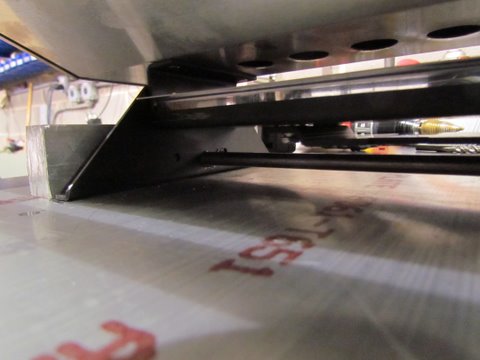

look close as the lock bar passes thru both the upright and the grills legs
Next
Prev
plate without grill attached
done plate mounted, grill on the mounting plate with locking bar installed
Plate ready to be installed on top of radar arch
look close as the lock bar passes thru both the upright and the grills legs
3/8 holes in aluminum uprights and the grills legs secures the grill to the plate by a round lock bar, The lock bar is 3/8 inch round 304 stainless steel.Drilled a hole in the end of the lock bar for a lock to prevent theft.Presently just have a hitch pin clip. Bent one end to serve as a handle to pull out locking bar. Will be adding some sound deadning materials
counter sunk allen headed stainless 10 /32 screws secure the aluminum uprights to the plate
adding rack for grill carry on top of my radar arch/ rocket launcher. I will ubolt this plate to the radar arch and the grill's feet fit in between the two aluminum pieces
