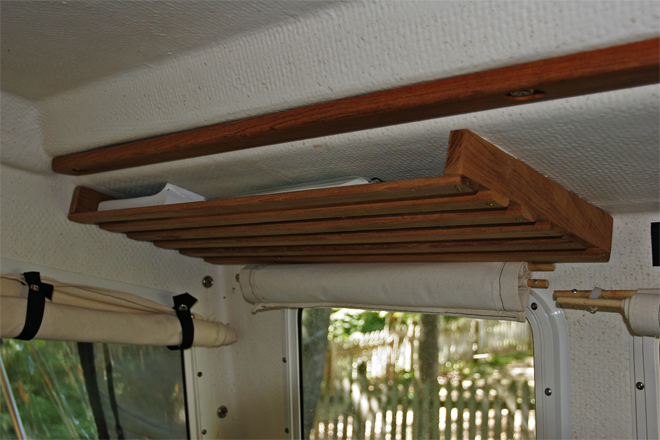

Long chart rack mounted with 4200. I have seen several versions of this on other CDs. .
Next
Prev
Console Shelf Door Down shows storage area for towels and misc books.
Shade is split to allow air circulation from forward side windows. Shade is made from canvas with dowel rods on top and bottom to allow easy rollup.
Added Furuno 1715 Radar and Navman F210 Flowmeter (Far Left guage). Fabricated new mount for Garmin GPS/chartplotter. Both units can be swiveled and rotated up and down. Radar and GPS connected via NMEA 0183 interface allowing transfer of NAV DATA and Waypoint Lollipop to Radar.
Long chart rack mounted with 4200. I have seen several versions of this on other CDs. .
Lucite compartment is handy for holding charts and stuff.

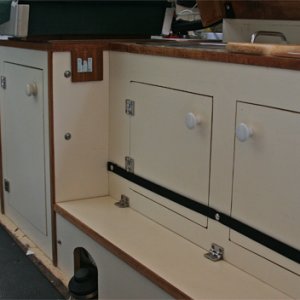

Galley cabinets were cut into the starboard seat box. Hinged lid covers long box used to hold rope, tools and other stuff. The whale foot pump works great and conserves water. At left of top center is a clip that mates with fingers on the starboard bed support.

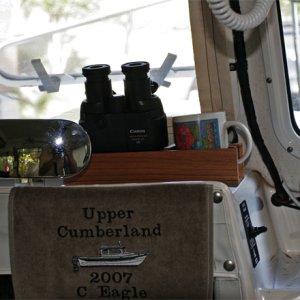

Center console covered with grippy mat. A prized addtion is the embroidered towel given to us by Brenda Byrd at our first CD gathering. Binoc / cup holder will be mounted in front of helm. Windlass switch can be reached from helm, standing at center window or from the foredeck.
Next
R

Long chart rack mounted with 4200. I have seen several versions of this on other CDs. .

  • Media owner RichardW
  • Date added
Long chart rack mounted with 4200. I have seen several versions of this on other CDs. .
Click to expand...
There are no comments to display.

Media information

Category
Interior Organization projects
Album

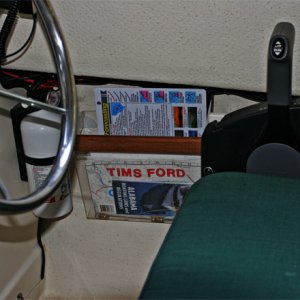

Copilot storage made from lucite sheet cut, heated and formed into a simple L shape. Mounted to forward bulkhead and seat box. Teak trim stiffens and covers the top edge.
