I started to build a drawer but did not like the loss of storage space. There is a lot of space in here. The base panel sits inside on little feet that raises it up above the
T-Track.

Note: The storage hatch cover Hinge was moved to the left so the box can slide back and a tab was added inside the hatch to support the lid. Also, I used some left over latch parts on the floor, this keeps the table leg from sliding backward. Also added a pad on the leg for the table to rest against.

A hole was drilled thru the "L" bracket and a bolt with knob is used to hold things in place. This single bolt is really just a pin and is held in place by Velcro. It keeps everything in place very snug when the table is up folded down as pictured.

Sliding seat in new position.

A lumbar pillow is nice to use here. We often sit on a PFD cushion for a better look-out/view. Not pictured here, I added a snap under the table and a small strap snaps into it and then snaps onto the existing cushion snap. This hold the back-rest cushion in place.

I started to build a drawer but did not like the loss of storage space. There is a lot of space in here. The base panel sits inside on little feet that raises it up above the
T-Track.

Handle for moving the box. It slides very easy on the plastic rails.

These are Sea Dog slide bolts that hold the box in position. 2 holes drilled in floor.

Most of the seat was recycled from the original seat box. Front, side and bottom panels were added along with the floor/deck. All painted to match.

M

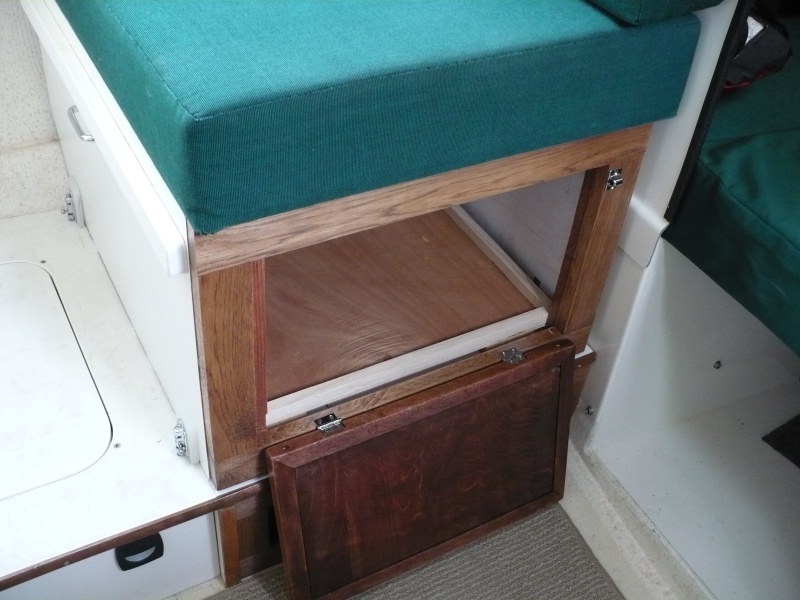

I started to build a drawer but did not like the loss of storage space. There is a lot of space in here. The base panel sits inside on little feet that raises it up above the T-Track.

Montana Kev
Jun 25, 2011
