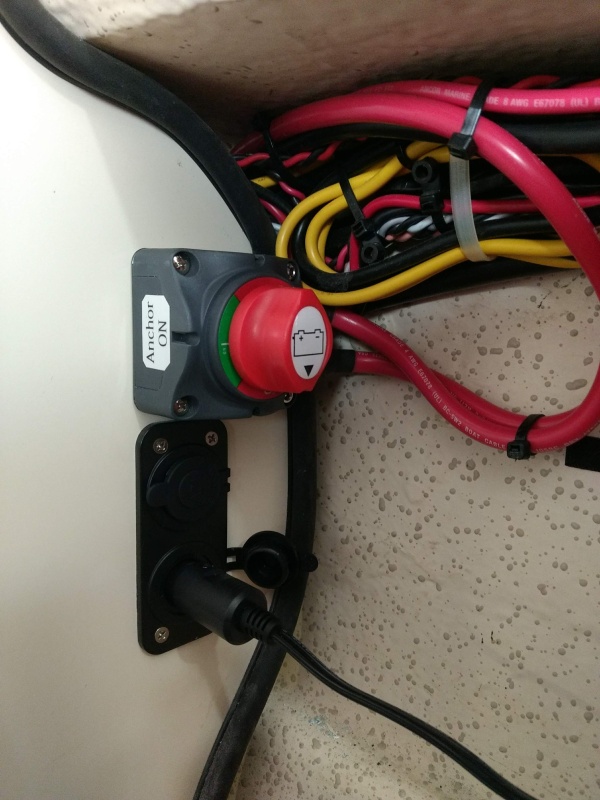

Here's the switch I installed to kill the circuit to the windlass. When not using the windlass the switch will be in the OFF position so we can't accidently release the anchor while underway.
Next
Prev
Here it is in place. We had some scraps of wall paper left over from when we rehabbed our guest room a year and a half ago so I glued some on the front to make it look a little nicer. I'm going to order a rectangular hatch for the cover eventually. Once I do I'll probably ditch the wallpaper and sand/paint it.
I made a cover to fill the opening to the anchor locker in hopes of keeping water off the V-berth cushions when hauling in the rode/chain with the windlass. The cleat on the back hangs over the existing fiberglass bulkhead that forms the locker. With 2 coats of epoxy covering the back water "should" just shed right off into the bottom of the locker.
Gemlux clamshell cover covering the anchor locker drain hole.
Here's the switch I installed to kill the circuit to the windlass. When not using the windlass the switch will be in the OFF position so we can't accidently release the anchor while underway.
Then I made a bracket out of 1.5 inch aluminum angle to secure the bitter end of the rode. It's secured to the bow eye bolts and the rode is spliced to the bracket.
Drilled the anchor locker drain hole. I used the magnet trick to locate the spot where the hole would be drilled. final hole size is 1/2 inch.
Decided to go ahead and go with this location for the switch. Per the advise of some C-Brats, I have another 50 amp breaker on order that will get mounted on the lower bulkhead. This will be used to kill the circuit when the windlass is not being used so there are no accidental anchor releases.
Next
D

Here's the switch I installed to kill the circuit to the windlass. When not using the windlass the switch will be in the OFF position so we can't accidently release the anchor while underway.

Here's the switch I installed to kill the circuit to the windlass. When not using the windlass the switch will be in the OFF position so we can't accidently release the anchor while underway.
Click to expand...
There are no comments to display.

Media information

Category
Lewmar Windlass Install
Album
Starting working the foredeck for my windlass install. We bought the Lewmar 700 Pro Fish.
