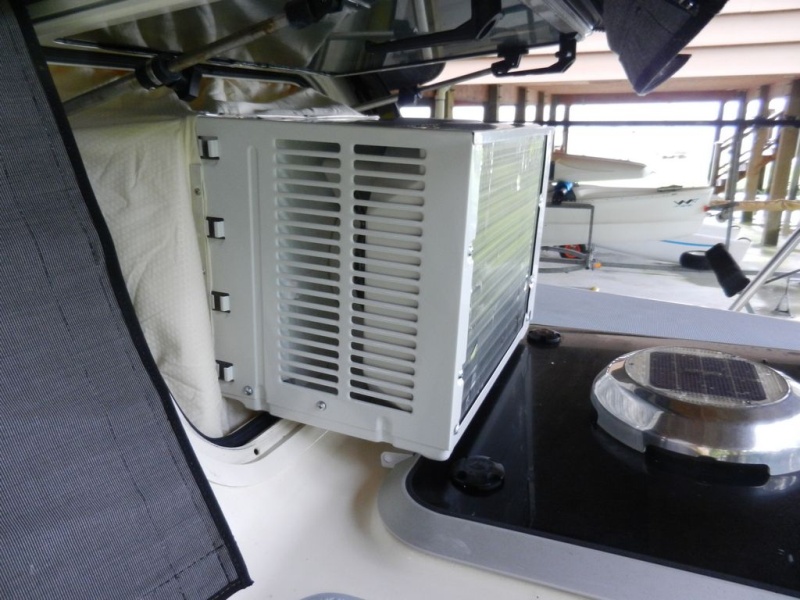

Here is the outside of the unit sitting on the hatch hinges.
Next
Prev
I used a kayak "bungee button" (http://kayakfishinggear.com/bungeebutton.aspx) at each corner of the window frame.
Lisa made the sock to have the exact rectangular opening of the AC unit on one end,, and the measured outer window frame on the outer edge. I used thin aluminum strips and VERY short sheet metal screws to fasten the "sock" to the AC unit. The outer edge has 1/4" bungee cord in a hem and one of those squeeze cinch thingies. There is two fabric layers with some insulating foam in between them to help (marginally) prevent air-to-air exchange.
Then we started measuring for a "sock" to seal up the air as best we could.
Here is the outside of the unit sitting on the hatch hinges.
The backs of the "feet" are cut so that they sit on the hinges of the hatch. They are cut down so that they cause the AC to angle back for good water drainage. They are just high enough, though, to keep the AC off of the lexan.
Here are the hooks in the feet firmly connected to the window frame.
The first thing I did was epoxy some "feet" on the bottom of the AC. There are "hooks" cut into the feet to sit on the window frame. These are glued down with 5200.
Next
R

Here is the outside of the unit sitting on the hatch hinges.

  • Media owner Ray
  • Date added
Here is the outside of the unit sitting on the hatch hinges.
Click to expand...
There are no comments to display.

Media information

Category
Air Conditioner
Album
The first thing I did was epoxy some "feet" on the bottom of the AC. There are "hooks" cut into the feet to sit on the window frame. These are glued down with 5200.
