Helm Wiper & Washer Control Switches
Next
Prev
Port Wiper Momentary Control Switch.
Starboard Washer Thru Deck Fitting
Port Washer Thru Deck Fitting
Helm Wiper & Washer Control Switches

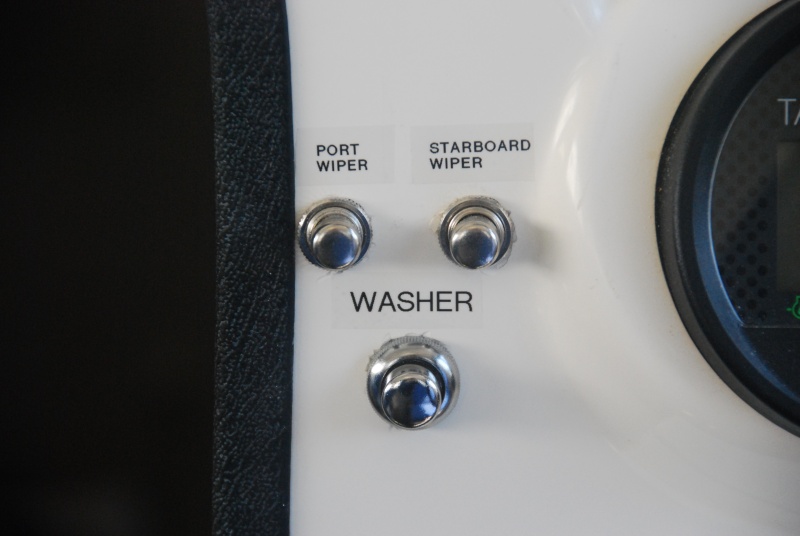

Helm Wiper Motor/Washer Switches. The added Washer Switch is the larger bottom switch. An in-line fuse holder is located abt 2" from HOUSE 12V BUSS feeding the Washer Switch.
The water tank is located under the sink and below the Autopilot CPU - beside the hydraulic pump. NOTE: Windshield Washer Fluid should be mixed with fresh water to minimize any 'crud' buildup in the lines and heads with full strength used as you would your car when approaching the colder seasons. The brown jug, behind the white washer tank, is a pump sprayer from yard work that I used to spray fresh water on the windows. (One more item I can remove in the near future.)
Close up view of the replacement AFI \"wet\" Pantographic arm spray head. There are two adjustable nozzels on each side of the arm that cover large areas of the window.
Next
S

Helm Wiper & Washer Control Switches

  • Media owner Sea Angel
  • Date added
Helm Wiper & Washer Control Switches
Click to expand...
There are no comments to display.

Media information

Category
Sea Angel's Replacement AFI SS Wipers, Arm Assemblies and Windshield Washers.
Album
Standard 11.5" wipers and arms replaced with Pantographic arms and 14" SS Deluxe wipers. Adjustment of the 14" wiper position is straight forward with plenty of room for a full sweep. Adjust it parallel to the side in the park position. Either the SS Deluxe or SS Standard wiper(cheaper) could be used.
