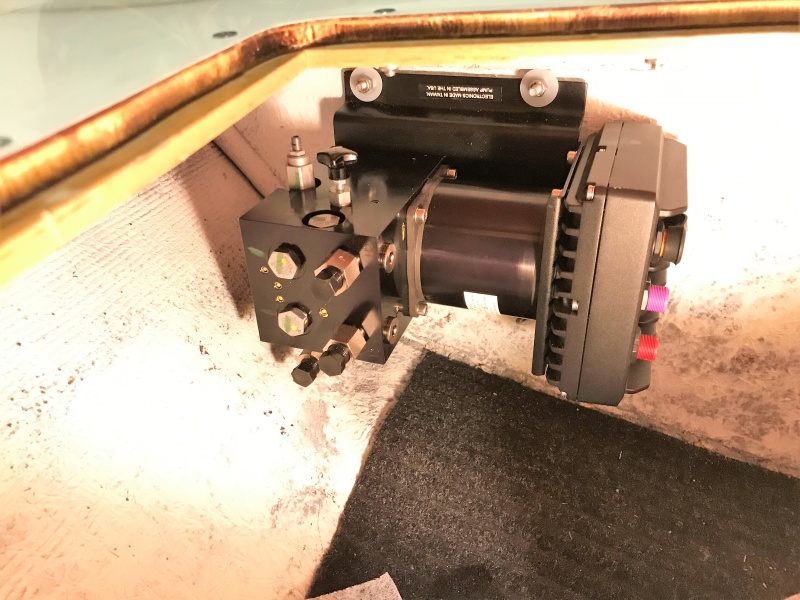

Garmin Smart pump installed under V-Berth

$Smart pump now plumbed with it\'s hydraulic lines$

The Smart pump is held by 4 screws thru the bulkhead. 2 at the bottom of the bulkhead just above the foot compartment door, the other two below the door.

Different view of Smart Pump

Garmin Smart pump installed under V-Berth

$New control head in dash, with it\'s protective cover on.$

Back of new control head installed in dash. (Back of Steering wheel has old auto pilot lines.)

Hole in dash where I removed old RayMarine control head and will install new Garmin control head

Garmin Smart pump installed under V-Berth
