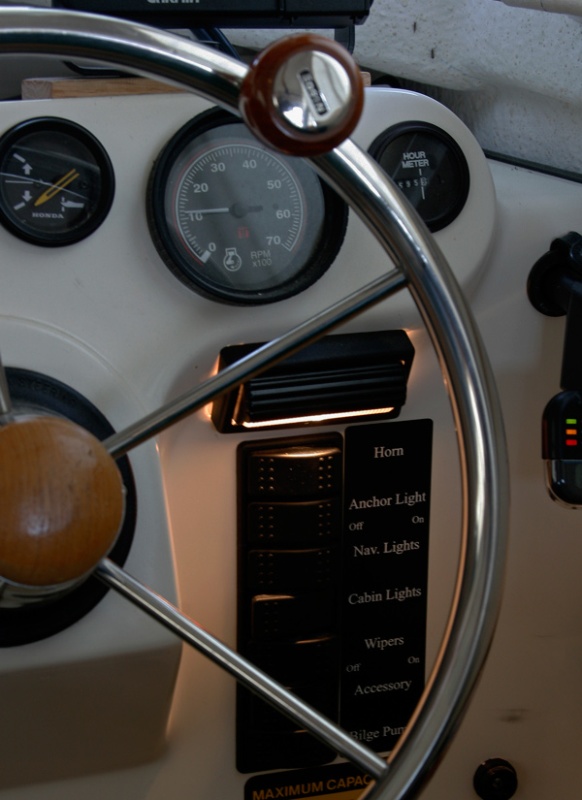

Flip light provides directed light onto the control switch panel. Very useful at dusk when you can't see the panel but do not want bright lights while your eyes adjust to the dark.
Next
Prev
Water Tank Sight Tube added to allow quick monitoring of water level in tank inside port storage enclosure. Black label tape on the tube clamps mark 1/2 and Full Levels. One end of the tube tees into the 1/2 inch tube exiting the bottom of the tank and the other end tees back into the vent tube exiting the top of the tank. I got the idea of a colored ball or float from Sea Wolf (thanks, Joe).
Window Shade can be rolled down to intermediate positions.
Starbard Window Covers Down make a soft light
Flip light provides directed light onto the control switch panel. Very useful at dusk when you can't see the panel but do not want bright lights while your eyes adjust to the dark.
Console Shelf Door Down shows storage area for towels and misc books.
Shade is split to allow air circulation from forward side windows. Shade is made from canvas with dowel rods on top and bottom to allow easy rollup.
Added Furuno 1715 Radar and Navman F210 Flowmeter (Far Left guage). Fabricated new mount for Garmin GPS/chartplotter. Both units can be swiveled and rotated up and down. Radar and GPS connected via NMEA 0183 interface allowing transfer of NAV DATA and Waypoint Lollipop to Radar.
Next
R

Flip light provides directed light onto the control switch panel. Very useful at dusk when you can't see the panel but do not want bright lights while your eyes adjust to the dark.

  • Media owner RichardW
  • Date added
Flip light provides directed light onto the control switch panel. Very useful at dusk when you can't see the panel but do not want bright lights while your eyes adjust to the dark.
Click to expand...
There are no comments to display.

Media information

Category
Interior Organization projects
Album
Copilot storage made from lucite sheet cut, heated and formed into a simple L shape. Mounted to forward bulkhead and seat box. Teak trim stiffens and covers the top edge.
