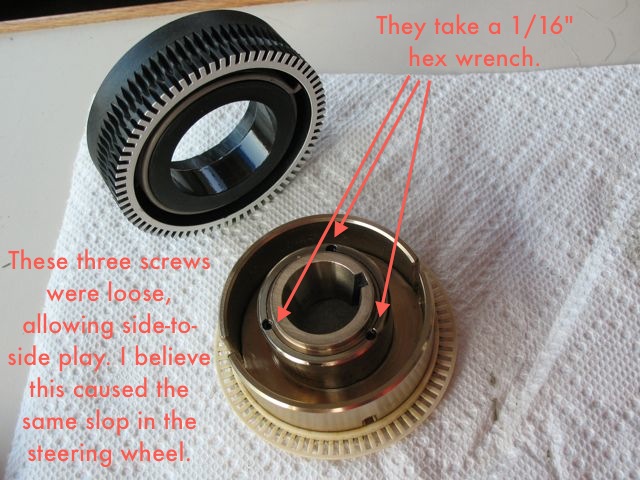

Fixing issue on Sportpilot that allows steering wheel to wobble side to side (perpendicular to steering motion of wheel).
Note that this black piece can be removed/reinstalled without taking the white/brass part out of the Sportpilot. When I did the job I didn't know what problem I was looking for, so I took the whole thing out to inspect it, and it was a bit of a challenge to get it back in.
Fixing issue on Sportpilot that allows steering wheel to wobble side to side (perpendicular to steering motion of wheel).
Sportpilot exploded diagram small
Another Brat's Sportpilot +, but shows the brass "hub" which looks the same as on the Sportpilot.
Sportpilot drawing
