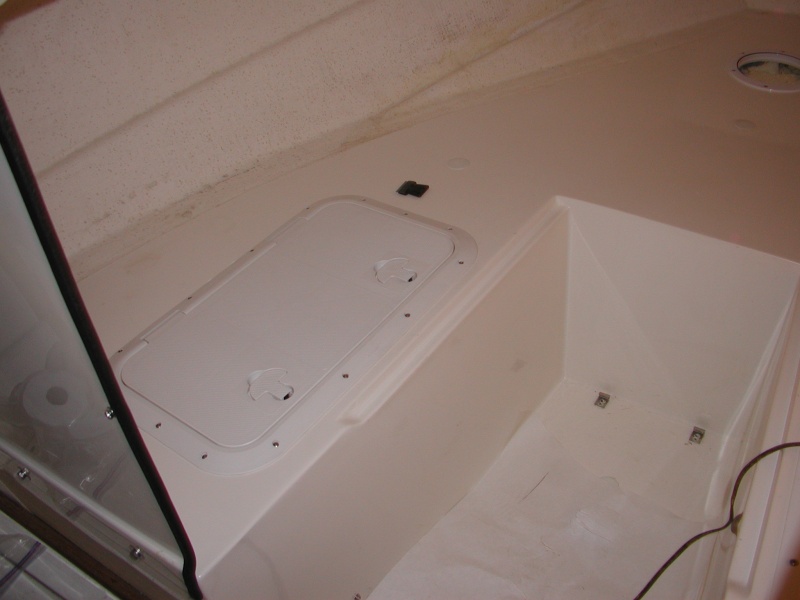

Finished project took about 8 hours total. The hatch is from West Marine Bomar 10X20 $113
Next
Prev
Above Gas Tank Access. McMaster Carr sell the Edge trim. 1/4" Self gripping edge trim with metal core part# 24175k16 $1.21 per ft
Above Gas Tank Access : under cut the panel balsa for the edge trim. I sealed the balsa with West system epoxy thinned with tolulene for penetration
Finished project took about 8 hours total. The hatch is from West Marine Bomar 10X20 $113
Painted with West Marine Starbrite and bedded the hatch with 4200.I figure the hatches will hold air as floatation for a while.
Shoved the front compartment full of foam and installed a pink foam bulkhead to hold it. I used some filler foam till the forward compartment was full. Note the 6" access I cut.
Cut it out with a hand saw then sanded with an orbital palm sander
Apx 2 cu ft of foam per side
