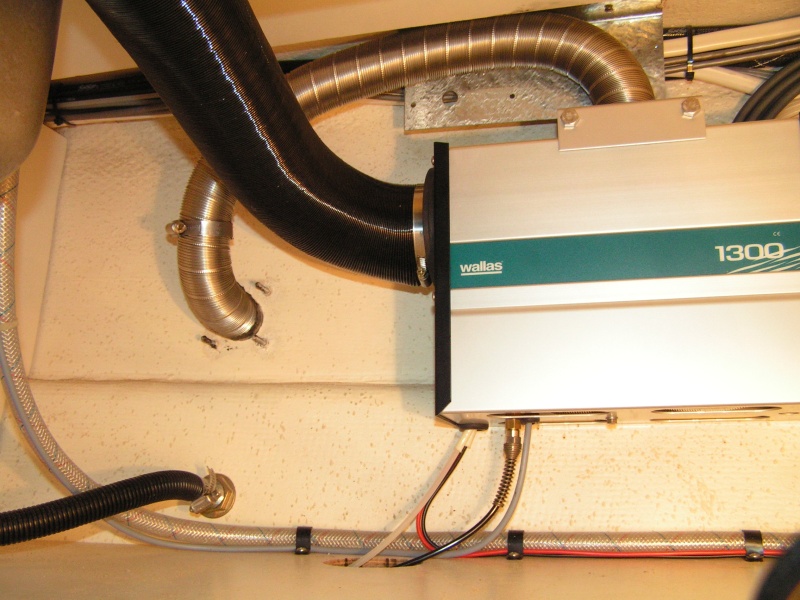

(Dora~Jean) Intake/exhaust hose and inside cabin hot air duct. Note fabbed insulating plate for intake/exhaust hose, it is spaced 1/4" on top from fiberglass.
Next
Prev
(Dora~Jean) Cold air return register, fixed vanes angled downward.
(Dora~Jean) Heated air output register, fixed vanes angled downward.
(Dora~Jean) Heated air duct.
(Dora~Jean) Intake/exhaust hose and inside cabin hot air duct. Note fabbed insulating plate for intake/exhaust hose, it is spaced 1/4" on top from fiberglass.
(Dora~Jean) Access hole for tubing to resevoir and air return.
(Dora~Jean) Combo intake/exhaust hull lead-thru.
(Dora~Jean) Added another 8 AWG wire from batteries to windlass, fab'd plate to tap into line for the Wallas.
