(Dora~Jean) Heated air output register, fixed vanes angled downward.
Next
Prev
(Dora~Jean) Fuel resevoir, note no drooping lines between heater and resevoir, important. Bungee strap was added later.
(Dora~Jean) Remote switch, located behind helm seat to reduce chance of accidental turn ON or OFF.
(Dora~Jean) Cold air return register, fixed vanes angled downward.
(Dora~Jean) Heated air output register, fixed vanes angled downward.
(Dora~Jean) Heated air duct.
(Dora~Jean) Intake/exhaust hose and inside cabin hot air duct. Note fabbed insulating plate for intake/exhaust hose, it is spaced 1/4" on top from fiberglass.

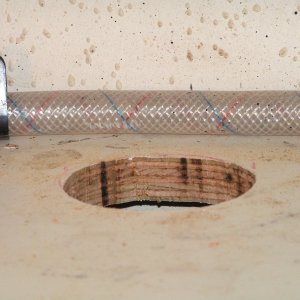

(Dora~Jean) Access hole for tubing to resevoir and air return.
Next
D

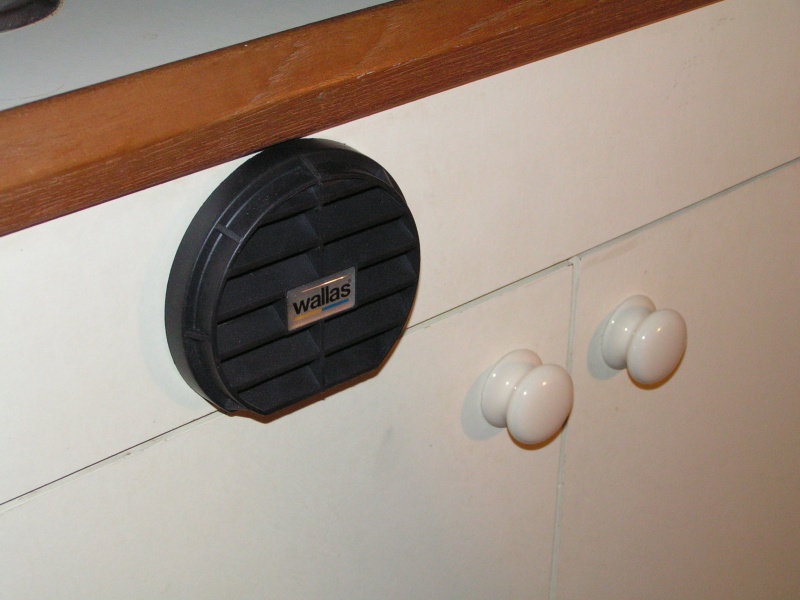

(Dora~Jean) Heated air output register, fixed vanes angled downward.
