Door, just out of the mold.
Next
Prev
IMG 20230630 194028145 HDR Original
It was a tight fit but happy with the result. This is the starboard rear transom hatch. I build a fiberglass bracket to install the Blue Sea battery combiner and on off switch
Installed the blue sea add a battery system. The switch is run in the on position, both batteries are charged when charging voltage is available. During discharge they are separated so your starting battery will not be drained.

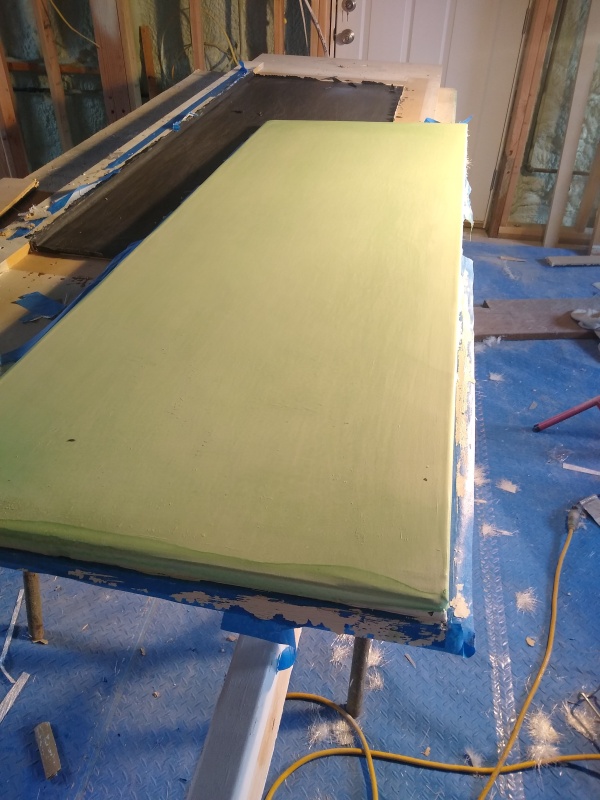

Door, just out of the mold.
Door is installed for test fit. I was pretty happy with how it turned out, not perfect but better than the old one. The green coating is the PVA, it washes off with water. Window was installed using the old door as a pattern.
Once the mold was prepped, I brushed on a Couple heavy coats of Gelcoat. 3 layers of Mat, HoneyComb core, three more layers of mat, Gelcoat. I laminated block of hardwood where hinges, door handle are mounted
The beginning of my new fiberglass door. Very simple MDF mold. Modeling clay radiuses in corners, Duratec surfacing primer sprayed. Followed by Lite polishing, 4 coats of wax release, 2 coats of PVA.
