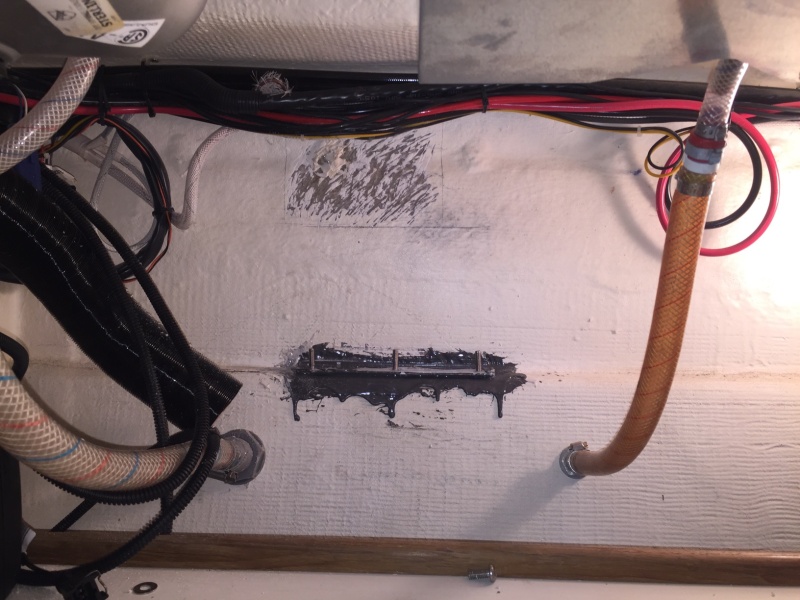

Deciding now to mount Heater higher up, where hull has been somewhat grinded, with old mounting bolts in sight, which will now become the support bracket bolts.

Mounting Plate with heater; fuel pump temporarily placed.

Mounting Plate installed

Same view, but with new mounting plate laying in view.

Deciding now to mount Heater higher up, where hull has been somewhat grinded, with old mounting bolts in sight, which will now become the support bracket bolts.

These were going to be the two lower bolts to support the brackets supporting the inboard edge of the Mounting Plate

Closeup view of mounting plate with brackets.

Another view, from farther out with middle shelf in view.

Deciding now to mount Heater higher up, where hull has been somewhat grinded, with old mounting bolts in sight, which will now become the support bracket bolts.
