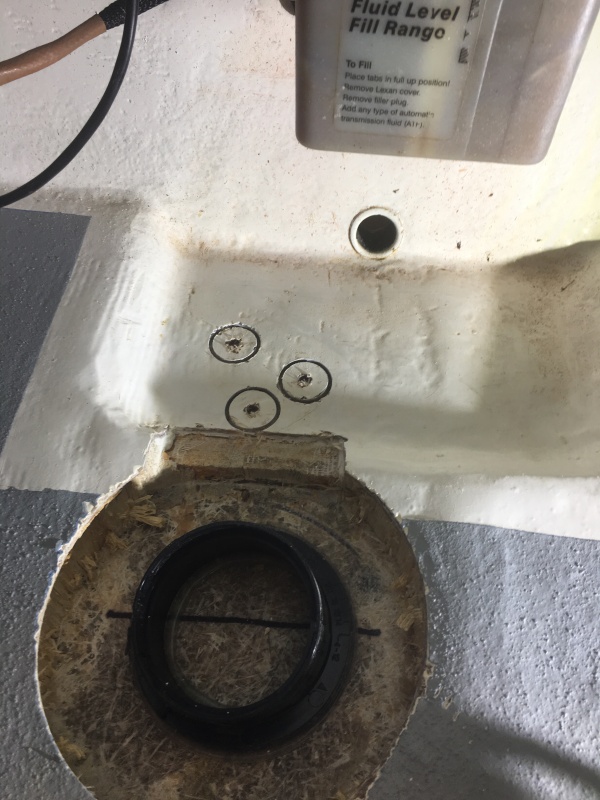

Cutting out the 3 screw holes for the bilge pump mount to screw into solid resin.
Next
Prev
Test fitting to make sure the transponder fits onto the base without hitting the resin.
Resin poured.
Ready to pour the fiberglass resin mixed with colloidal silica.
Cutting out the 3 screw holes for the bilge pump mount to screw into solid resin.
Undercut around the hole to give the fiberglass resin something to hold onto.
Mounted the transponder base to the bottom of the boat with a thin bead of silicone to hold it in place, fiberglass resin will be poured around it.
Next
C

Cutting out the 3 screw holes for the bilge pump mount to screw into solid resin.

Cutting out the 3 screw holes for the bilge pump mount to screw into solid resin.
Click to expand...
There are no comments to display.

Media information

Category
Shoot Through The Hull Transducer Installation
Album
4 inch hole saw to begin the installation. Wanted it mounted as far aft as possible.
