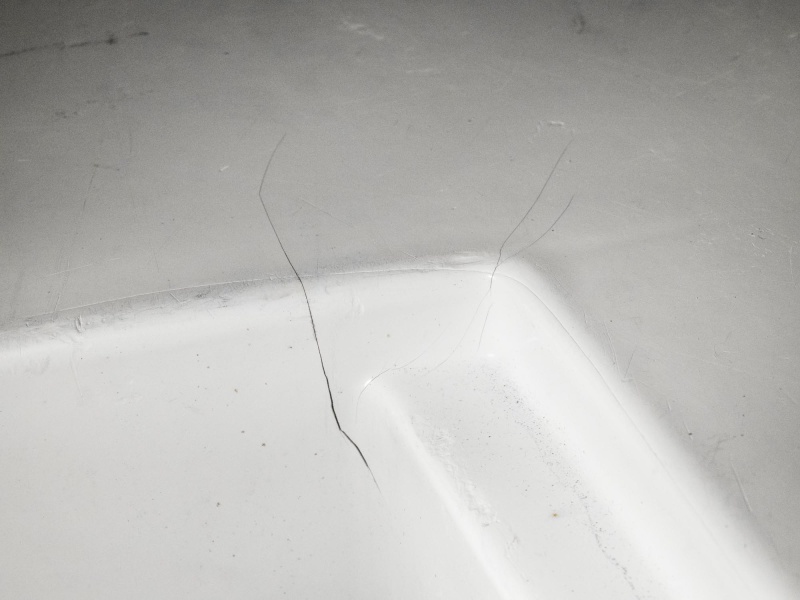

Crack in gelcoat at forward port side of portable toilet storage area.
Next
Prev
Bow eye from inside anchor well.
Transom under trim strip shows damage and evidence of past repair. The black plastic strip was missing and a previous owner tried to seal the evident junction between core and fiberglass with epoxy.
Now it starts to get ugly. This is what happens when you have no backing for bolts holding rod holders and you don't seal holes that go through cored areas. Core is mushy here. Rod holder on other side didn't crack cockpit deck, but I'm sure there is core damage there as well.
Crack in gelcoat at forward port side of portable toilet storage area.
There is unknown damage to the hull under a trailer bunk in the same general area as a crack in the gelcoat on the cabin floor at the aft bulkhead at opening to berth area. Also there is a faint crack in the tabbing (4" to rear and hard to see in photo) where bulkhead is tabbed to floor.
There is a crack in the fiberglass eyebrow on the port side of the roof in the same general area as a poorly repaired crack in the cabin ceiling fiberglass.
Left half of photo shows a faint crack on the starboard hull gelcoat (just below green stripe) just above a chine. Right half of photo shows a crack in the gelcoat on the inside of the hull at the forward cabin bulkhead (as seen from berth area), just below the top of the chine.
Next
P

Crack in gelcoat at forward port side of portable toilet storage area.

  • Media owner pcg
  • Date added
Crack in gelcoat at forward port side of portable toilet storage area.
