Prev

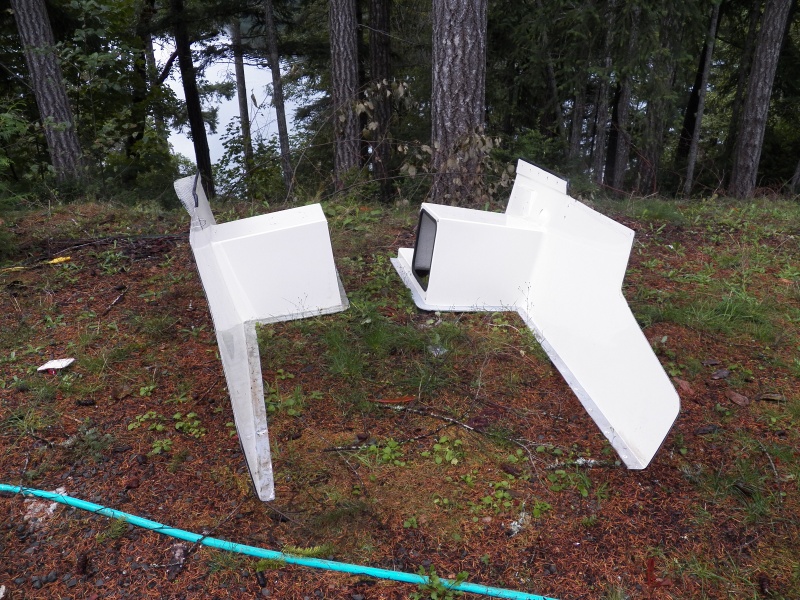

CD 16 seat box/cockpit panels removed.
Next
Prev

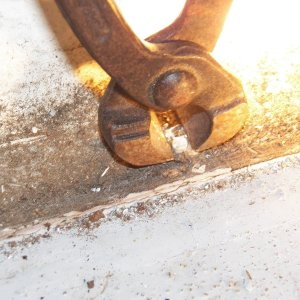

Pulling corroded rivets out of the core after the heads had been drilled off (or the heads had already fallen off). Here is another picture showing that the bead of caulking could hold dirty water behind the panels and contribute to the leaking pop rivets.

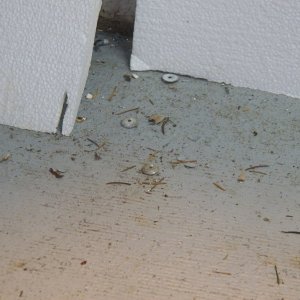

Pop rivet heads that just fell off during removal.

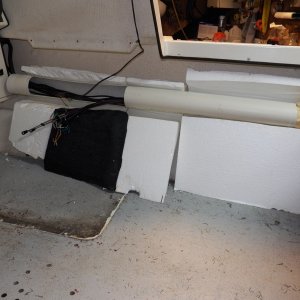

This shows the flotation foam behind the starboard panel. I intend to reuse most of it, but fastened into place with spray foam. When loose, they act as wedges against the panels and may have contributed to the pop rivet failures.
CD 16 seat box/cockpit panels removed.
Seat box removal, showing the exploratory drilling on the port side that made me decide to remove everything. The dark holes indicate bad balsa core. The outer holes are marked "OK" with a red marker, although I may find that's a bit hopeful when I go further.
When actually leaking enough to cause rot, they look more like this.
These rivets all have rusty mandrels, indicating high levels of moisture in the core even areas where the rivets didn't appear to have leaked and the wood appears okay.
Next
M

CD 16 seat box/cockpit panels removed.

CD 16 seat box/cockpit panels removed.
Click to expand...
There are no comments to display.

Media information

Category
Balsa Core Issues
Album
On the original setup, the fuel filter was between the tanks and screwed to the deck. It's now hung temporarily from an outboard bolt (above the bilge pump) and exploratory holes have been drilled to find out the condition of the balsa core where it has been breached to install hold-downs for the various gear.
Added by
Marco Flamingo
Date added
View count
1
Comment count
0
Rating
0.00 star(s) 0 ratings
