black box has battery for breakaway should the truck and trailer become separtated. This controller works well with my 2009 Chevy built in digital brake controller set the gain to 4 and it seems to be about right for the braking force.Swap done by our trailer's daddy Float On Trailers in Vero Beach Florida On to Key West
Next
Prev
fender support/ step with stiffner installed
notice stock support 3/8 plate next to it. First bolted plate in place with 1/4 x 20 stainless bolts and lock nuts. Then used existing holes to drill the 3/8 holes for mounting to trailer's frame. Longer bolts were required 1 3/4 worked with nylon lock nuts
Float On trailer fender supports this is the area where we have cracking occur. To stiffin up the arrangement we added a piece 0f 3/8 x 3 1/2 x 13 3/4 long piece of aluminum plate.
black box has battery for breakaway should the truck and trailer become separtated. This controller works well with my 2009 Chevy built in digital brake controller set the gain to 4 and it seems to be about right for the braking force.Swap done by our trailer's daddy Float On Trailers in Vero Beach Florida On to Key West

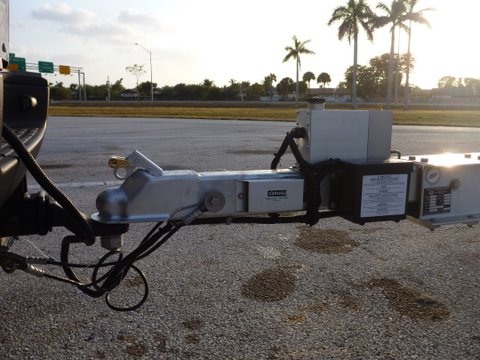

New Longer tongue with Electric over Hydraulic Carlise unit. Recently upgraded to a 1600 PSI brake from the original 1200 PSI unit. The heavier duty unit works even better. The 1600 PSI unit is recommended for disc brakes not the drum type.
Model 70 surge brakes coming off
Top end under fender also got the same treatment.
Next
W

black box has battery for breakaway should the truck and trailer become separtated. This controller works well with my 2009 Chevy built in digital brake controller set the gain to 4 and it seems to be about right for the braking force.Swap done by our trailer's daddy Float On Trailers in Vero Beach Florida On to Key West

  • Media owner Will-C
  • Date added
black box has battery for breakaway should the truck and trailer become separtated. This controller works well with my 2009 Chevy built in digital brake controller set the gain to 4 and it seems to be about right for the braking force.Swap done by our trailer's daddy Float On Trailers in Vero Beach Florida On to Key West
Click to expand...
There are no comments to display.

Media information

Category
Trailer Mods
Album
P1000486 Some scrap 3 x 4" aluminum angle 1/2" stainless u-bolt 35 dollar stainless turnbuckle, short piece of chain, and a shackle.
