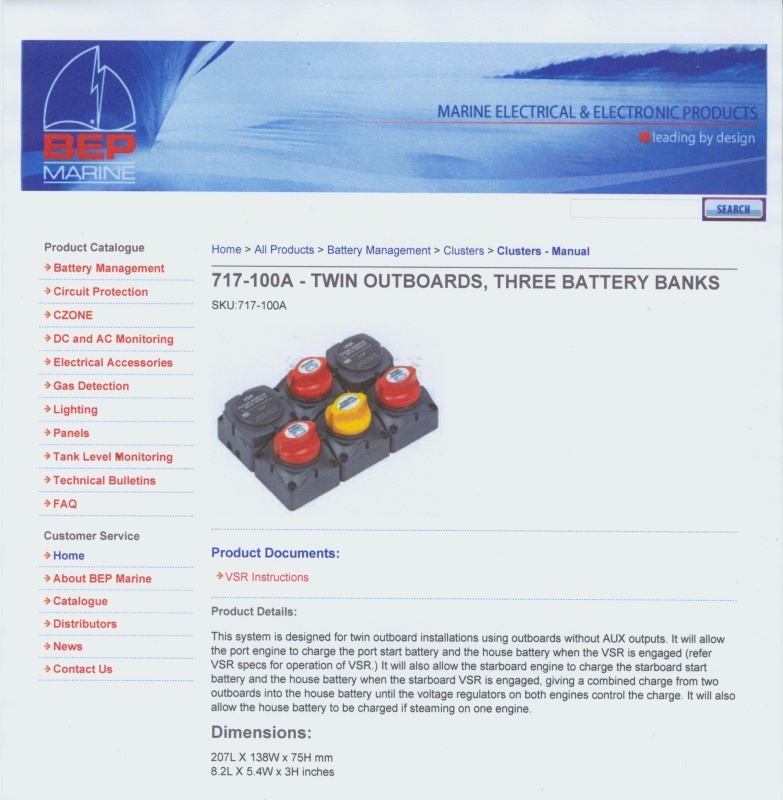

BEP 717A-100A Intro
Next
Prev
BATTERY Revised System Overview: After installing 2 #24 Start & 1 #27 House battery a check was made. The Charger will not reach the 13.7V required to energize the VSR if the battery is low. If the time needed to do this is acceptable, than the original wiring for this setup will work. I chose to change it to charge the Port and House batteries with the STBD battery charged thru the Parallel Switch while on shore power, since I normally run the house systems while I work in this mode. The Battery Meter confirms their status.
